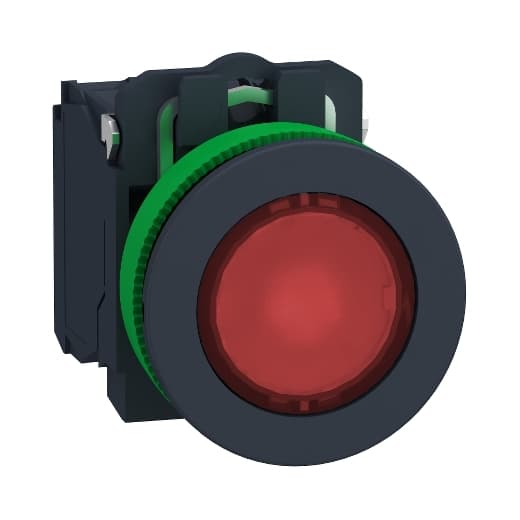

XB5FW34B5 Schneider Electric Industrial Automation Components

Product Details

• Head Type
  Built-in-flush
• Range Of Product
  Harmony XB5
• Type Of Operator
  spring return
• Contact Operation
  Slow-break
• Product Or Component Type
  Illuminated push-button
• Height
  1.65 in (42 mm)
• [Us] Rated Supply Voltage
  24 V
• Width
  1.44 in (36.6 mm)
• Signalling Type
  Steady
• Operator Profile
  Red flush, unmarked
• Bezel Material
  Dark grey plastic
• Depth
  2.17 in (55 mm)
• Tightening Torque
  7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
• Contacts Material
  Silver alloy (Ag/Ni)
• Mounting Diameter
  1.20 in (30.5 mm)
• Light Source
  Protected LED
• Operator Additional Information
  With plain lens
• Resistance To High Pressure Washer
  1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
• [Ith] Conventional Free Air Thermal Current
  10 A EN/IEC 60947-5-1
• Sale Per Indivisible Quantity
  1
Shape Of Signaling Unit Head
Round
Fixing Collar Material
Plastic
Positive Opening
With conforming to EN/IEC 60947-5-1 appendix K
[Ui] Rated Insulation Voltage
600 V 3)EN/IEC 60947-1
Bulb Base
Integral LED
Contacts Usage
Standard contacts
Current Consumption
18 mA
Cap/Operator Or Lens Colour
Red
Device Short Name
XB5F
Contacts Type And Composition
1 NO + 1 NC
Device Presentation
Complete product
Mechanical Durability
10000000 cycles
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Surge Withstand
1 kV IEC 61000-4-5
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-1
Service Life
100000 h at rated voltage and 25 °C
Operating Force
3.5 N NC changing electrical state 3.8 N
Supply Voltage Limits
19.2…30 V DC 21.6…26.4 V AC
Connections - Terminals
Screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
Terminals Description ISO N°1
(21-22)NC (13-14)NO
Electrical Reliability
Λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 Λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Operating Travel
0.06 in (1.5 mm) NC changing electrical state) 0.10 in (2.6 mm) NO changing electrical state) 0.17 in (4.3 mm) total travel)
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycle
Shape Of Screw Head
Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted flat Ø 5.5 mm
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 1.2 A 600 V, AC-15, A6
