Part#:XB6ECV3BP

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

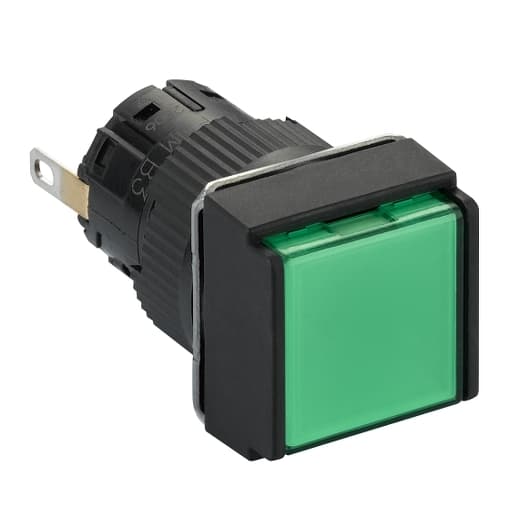

Schneider Electric XB6ECV3BP is a monolithic pilot light/lamp with an integral LED designed for signaling applications. This component, part of the XB6 sub-range, features a plastic body and bezel, ensuring compatibility with various industrial environments. It offers a fast connector socket for ease of installation and is characterized by a square shape. With an IP65 degree of protection, it is well-suited for use in areas where dust and water resistance are necessary. The pilot light has a 16 mm diameter, operates on a 24 V DC supply voltage, and emits a green light. Its terminals are designed for fast-on (insulated) or solder pins connections, providing flexibility in wiring.

Product Details

  • Cap/Operator Or Lens Colour
    Green
  • Shape Of Signaling Unit Head
    Square
  • Marking
    CE
  • Current Consumption
    10 mA
  • [Ui] Rated Insulation Voltage
    250 V 3)IEC 60947-1
  • Light Source
    Integral LED
  • Product Or Component Type
    Monolithic pilot light
  • [Us] Rated Supply Voltage
    24 V DC polarised
  • Signalling Type
    Steady
  • Bezel Material
    Plastic
  • Net Weight
    0.01 lb(US) (0.006 kg)
  • Tightening Torque
    5.31…8.85 lbf.in (0.6…1 N.m)
  • Mounting Diameter
    0.63 in (16 mm)
  • [Uimp] Rated Impulse Withstand Voltage
    2.5 kV IEC 60947-1
  • Sale Per Indivisible Quantity
    5
  • Operating Position
    Any position
  • Service Life
    30000 h
  • Range Of Product
    Harmony XB6E
  • Light Block Supply
    Direct
  • Device Short Name
    XB6E
  • Overvoltage Category
    II IEC 60536
  • Connections - Terminals
    Insulated faston 2.8 x 0.5 mm Solder terminal <= 0.75 mm² AWG 19 Fast connector socket

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
