Schneider Electric

Part#:XVLA143

Manufacturer:Schneider Electric

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

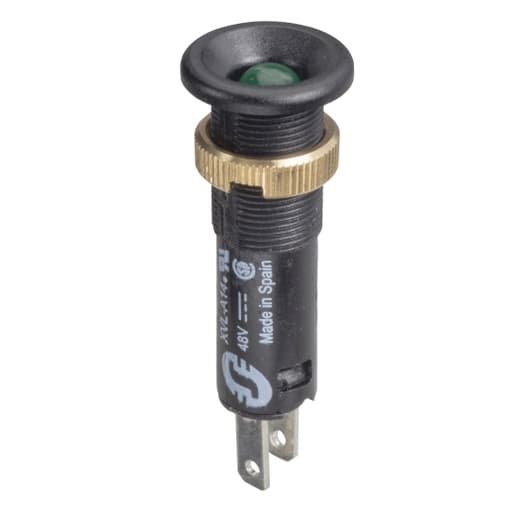

Schneider Electric XVLA143 is a pilot light from the XVL sub-range, designed with a protruding LED for clear visibility. It features a black bezel with a round shape and offers a degree of protection rated at IP40. The pilot light has dimensions with a diameter of 8 mm, a net height of 12 mm, a net depth of 34 mm, and a net width of 12 mm. It operates on a DC supply voltage of 48 V and emits a green light. The XVLA143 is equipped with an integral ballast resistor and a built-in diode for protection, and it utilizes fast-on type terminals for connections.

Product Details

  • Light Source
    Protruding LED
  • Current Consumption
    10 mA
  • Range Of Product
    Harmony XVL
  • Width
    0.47 in (12 mm)
  • Mounting Diameter
    0.31 in (8 mm)
  • [Ui] Rated Insulation Voltage
    50 V IEC 60947-1
  • [Us] Rated Supply Voltage
    48 V
  • Terminals Description ISO N°1
    (X1-X2)PL
  • Product Or Component Type
    LED pilot light with black bezel
  • Nominal Voltage Limit
    0.8...1.1 Un
  • Bulb Lifespan
    100000 h
  • Light Block Colour
    Green
  • Net Weight
    0.01 lb(US) (0.003 kg)
  • Supply Circuit Type
    DC
  • Component Name
    XVL
  • Depth
    1.34 in (34 mm)
  • Height
    0.47 in (12 mm)
  • IP Degree Of Protection
    IP40 IEC 60529 IP40 NF C 20-010
  • Connections - Terminals
    Tag for Faston connectors 2.8 x 0.5 mm Tag for soldering connectors
  • Protection Type
    Built-in by diode Integral ballast resistor

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of XVLA143 on Powermatic Associates is $32.80. Order now.

XVLA143 Related Documents

Product Datasheet-1631029863301.pdfCatalog-1631029863322.pdf
