BI5-G18-ADZ30X2-B3331 Turck Industrial Automation Components

Name: BI5-G18-ADZ30X2-B3331
Brand: Turck
Price: 189.4 USD
Availability: BackOrder

BI5-G18-ADZ30X2-B3331 on Powermatic Associates

Part#:BI5-G18-ADZ30X2-B3331

Alt. Part#:4208092

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

BI5-G18-ADZ30X2-B3331 Turck - BI5-G18-ADZ30X2-B3331 Inductive Sensor

Product Details

Weight
62 g
RoHS
Yes
Country Of Origin
USA
HTS Code
8536507000
Design
Threaded barrel
Electrical connection
Connector, 1/2″
Ambient temperature
-25…+70 °C
Housing material
Metal, CuZn, Chrome-plated
Output function
NO contact, 2-wire
Operating voltage
20…250 VAC / 10…300 VDC
Protection class
IP67
Construction size
M18 x 1
Mounting
Flush
Country of Origin
Germany
Weight
62 grams
Ambient Temperature
-25 degrees celsius, 70 degrees celsius
Operating Voltage
10 volts, 20 volts, 250 volts, 300 volts

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BI5-G18-ADZ30X2-B3331 on Powermatic Associates is $189.40. Order now.

About the product

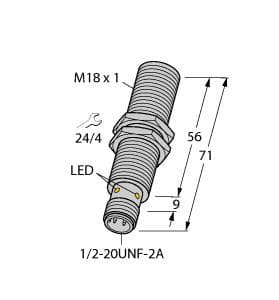

Inductive Sensor, Flush, Threaded barrel, M18 x 1, Chrome-plated brass, AC 2-wire, 20…250 VAC, DC 2-wire, 10…300 VDC, NO contact, 1/2" male connector

BI5-G18-ADZ30X2-B3331 Related Documents

English-1630965237458.pdf
