LI300P2-Q25LM1-LIU5X3-H1151 Turck Industrial Automation Components
Part#:LI300P2-Q25LM1-LIU5X3-H1151
Manufacturer:Turck
Category:Industrial Automation Components
Product Lifecycle:Discontinued
Product description

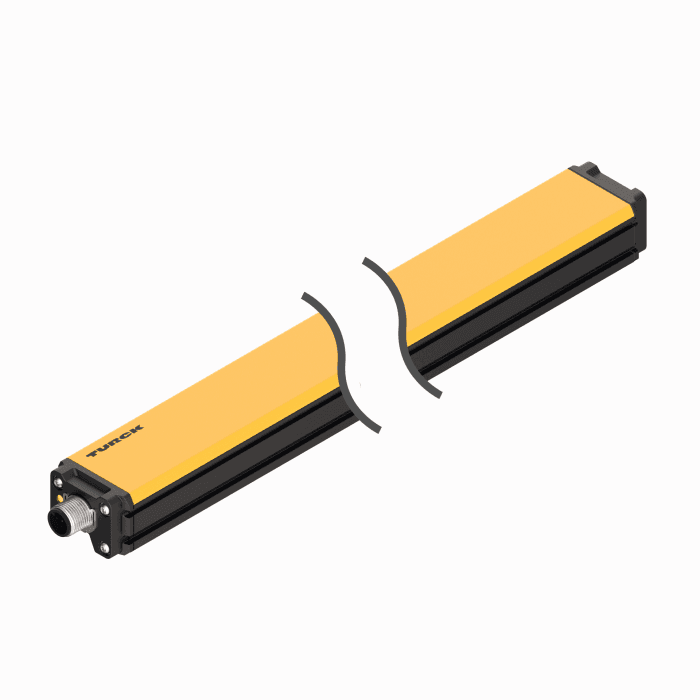

LI300P2-Q25LM1-LIU5X3-H1151 Turck - LI300P2-Q25LM1-LIU5X3-H1151 Inductive Linear Position Sensor
Product Details
- Current output 4…20 mA
- Measuring principle Inductive
- Electrical connection Connector, M12 × 1
- Operating voltage 15…30 VDC
- Output function Analog output
- Measuring range 300 mm [11.81 in]
- Design Profile
- Ambient temperature -25…+70 °C
- Voltage output 0…10 V
- Housing material Aluminum/plastic, PA6-GF30, Anodized
- Protection class IP67
- Weight 617 grams
- Operating Voltage 15 volts, 30 volts
- Ambient Temperature -25 degrees celsius, 70 degrees celsius
- Country of Origin Germany
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
About the product
Inductive Linear Position Sensor, Measuring range 300 mm, Rectangular, aluminium / plastic, Versatile mounting possibilities, Positioning element P2-Li-Q25L, mounting aid M1-Q25L included in delivery, LED indicates measuring range, Immune to electromagnetic interference, Extremely short blind zones, Resolution, 12-bit, 4‐wire, 15…30 VDC, Analog output, Programmable measuring range, 0…10 V and 4…20 mA, M12 × 1 male, 5-pin
