LT30E-R16-S40LI0-EX-B1140/3A Turck Industrial Automation Components

Name: LT30E-R16-S40LI0-EX-B1140/3A
Brand: Turck

LT30E-R16-S40LI0-EX-B1140/3A on Powermatic Associates

Part#:LT30E-R16-S40LI0-EX-B1140/3A

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Discontinued

Product description

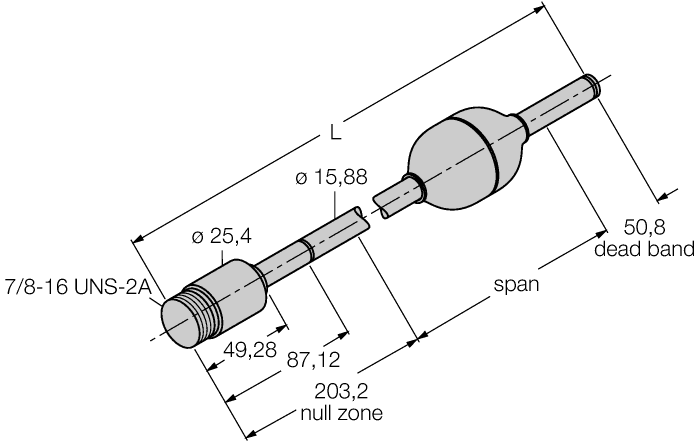

LT30E-R16-S40LI0-EX-B1140/3A Turck - LT30E-R16-S40LI0-EX-B1140/3A Magnetically actuated linear position sensor, Analog

Product Details

Approvals
ATEX, FM C1D1,FM C1D2, CE
Electrical connection
Connector, 7/8″
Current output
20…4 mA
Operating voltage
13.5…30 VDC
Measuring range
762 mm [30.00 in]
Output function
Analog output
Measuring principle
Magnetostrictive

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

Magnetically actuated linear position sensor, Analog, Measuring range 762 mm, EZ-Track Linear Displacement Transducer, 13.5…30 VDC, Analog output, 4…20 mA, loop-powered
