REM-102B6T-9F32B-H1151 Turck Industrial Automation Components
Part#:REM-102B6T-9F32B-H1151
Alt. Part#:100023551
Manufacturer:Turck
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

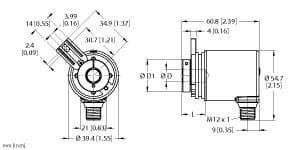

REM-102B6T-9F32B-H1151 Turck - REM-102B6T-9F32B-H1151 Absolute Rotary Encoder - Multiturn, Industrial Line
Product Details
- Weight 200 g
- Country Of Origin DEU
- HTS Code 9032894000
- Encoder line Industrial-Line
- Communication protocol SAE J1939
- Shaft diameter D [mm] 6 mm
- Protection class IP67
- Technology Magnetic
- Output type Absolute multiturn
- Electrical connection Connector, M12 × 1
- Operating voltage 10…30 VDC
- Flange diameter Ø 36 mm
- Flange type Flange with mounting element
- Protection class shaft IP67
- Shaft Type Blind hole shaft
- Housing material Die-cast zinc
- Ambient temperature -40…+80 °C
- Weight 200 grams
- Country of Origin Germany
- Operating Voltage 10 volts, 30 volts
- Ambient Temperature -40 degrees celsius, 80 degrees celsius
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of REM-102B6T-9F32B-H1151 on Powermatic Associates is $741.90. Order now.
About the product
Absolute Rotary Encoder - Multiturn, Industrial Line, Flange with long torque stop, Hollow shaft, Ø 6mm, Optical measuring principle, Shaft material, stainless steel, , Protection class IP67 on housing and shaft side, ‐40…+80 °C, Max. 4000 rpm (continuous operation 2000 rpm), 10-30 VDC, SAE J1939, M12 connection, 5-pin, Singleturn resolution 14 bit scalable, default 14 bit, Multiturn resolution scalable up to 29 bit over total resolution, default 18 bit, Total resolution 32 bit scalable, default: 32 bit
