REM-190S10S-IOL32B-H1141 Turck Industrial Automation Components

REM-190S10S-IOL32B-H1141 on Powermatic Associates
Turck

Part#:REM-190S10S-IOL32B-H1141

Manufacturer:Turck

Category:Industrial Automation Components

Alt. Part#:100018241

Product Lifecycle:Active

Get a quick Quote!

REM-190S10S-IOL32B-H1141 Absolute Rotary Encoder - Multiturn, IO-Link, Industrial Line

About the manufacturer: Turck is one of the manufacturers that offers Industrial Automation Components that you can order at Powermatic Associates site. Turck is a leading provider of sensor, fieldbus, and connectivity technologies, along with interface technology, human-machine interfaces (HMI), and RFID systems. We offer innovative solutions for factory and process automation requirements, guaranteeing top-notch performance.

Check out the REM-190S10S-IOL32B-H1141 Turck price in the box on the right side or send a quick quote.

Product Details

  • Weight
    295 g
  • Country Of Origin
    DEU
  • HTS Code
    9032894000
  • Weight
    295 grams
  • Operating Voltage
    18 volts, 30 volts
  • Country of Origin
    Germany
  • Ambient Temperature
    -40 degrees celsius, 85 degrees celsius
  • Housing material
    Die-cast zinc
  • Protection class shaft
    IP67
  • Output type
    Absolute multiturn
  • Shaft diameter D [mm]
    10  mm
  • Communication protocol
    IO-Link
  • Protection class
    IP67
  • Ambient temperature
    -40…+85 °C
  • Electrical connection
    Connector, M12 × 1
  • Flange type
    Synchro flange
  • Operating voltage
    18…30 VDC
  • Encoder line
    Industrial-Line
  • Shaft Type
    Solid shaft
  • Technology
    Magnetic
  • Flange diameter
    Ø  36  mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


REM-190S10S-IOL32B-H1141 Description

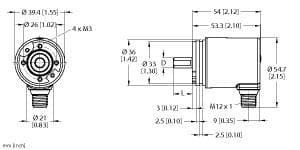

Absolute Rotary Encoder - Multiturn, IO-Link, Industrial Line, Synchro flange, Ø 36 mm, Solid shaft, Ø 10 mm × 20 mm, Magnetic measuring principle, Shaft material: stainless steel, IP67 rated on the shaft side, ‐40…+85 °C, Max. 4000 rev/min, , 18….30 VDC, M12 x 1 male connection, 4-pin, Singleturn resolution 14 bit scalable, default 14 bit, Multiturn resolution scalable only to 18 bits over total resolution, default 18 bits, Total resolution 32 bit scalable, default 32 bit



Related documents REM-190S10S-IOL32B-H1141 Specs
