RI-02CA0S3-2A1000-C Turck Industrial Automation Components

Name: RI-02CA0S3-2A1000-C
Brand: Turck

RI-02CA0S3-2A1000-C on Powermatic Associates

Part#:RI-02CA0S3-2A1000-C

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Discontinued

Product description

RI-02CA0S3-2A1000-C Turck - RI-02CA0S3-2A1000-C Incremental Encoder, Industrial Line

Product Details

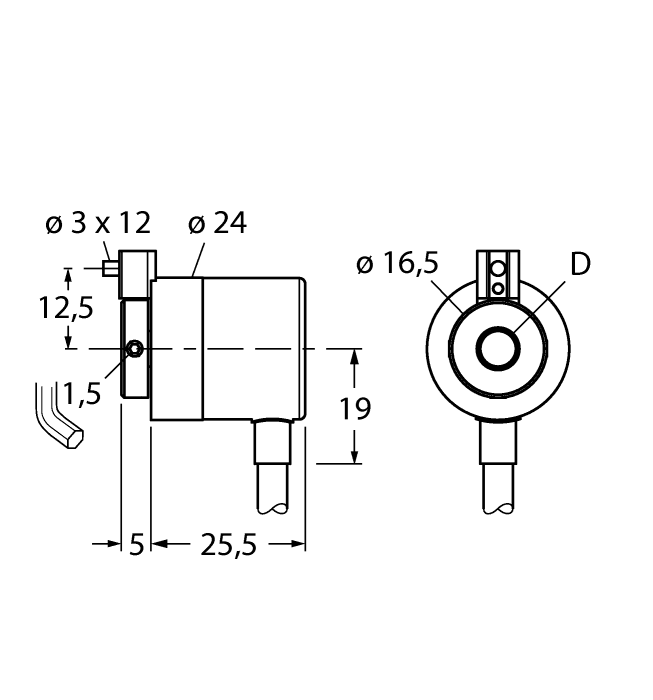

Flange diameter
Ø 24 mm
Housing material
Aluminium
Output type
Incremental
Flange type
Flange with torque stop
Protection class housing
IP64
Technology
Optical
Ambient temperature
-20…+85 °C
Output function
Push-Pull/HTL, with inverted signals
Shaft diameter D [mm]
6.35 mm
Encoder line
Industrial-Line
Shaft Type
Hollow shaft
Operating voltage
5…24 VDC
Electrical connection
Cable
Resolution, incremental
1000 ppr
Protection class shaft
IP50
Ambient Temperature
85 degrees celsius
Operating Voltage
24 volts

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

Incremental Encoder, Industrial Line, Resolution, incremental 1000 ppr, Flange with torque stop, Ø 24 mm, Blind hole hollow shaft, Ø 4 mm, Maximum plug-in depth, 14 mm, Optical measuring principle, Shaft material: Brass, Protection class IP50 on shaft side, ‐20…+85 °C, Max. 12000 rpm, 5…24 VDC, Cable connection, 8-pin, Push-pull 7272, with inversion, Pulse frequency max. 160 kHz, 1000 pulses per revolution
