RI-05IA0T-4A1024-C Turck Industrial Automation Components

Name: RI-05IA0T-4A1024-C
Brand: Turck

RI-05IA0T-4A1024-C on Powermatic Associates

Part#:RI-05IA0T-4A1024-C

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Discontinued

Product description

RI-05IA0T-4A1024-C Turck - RI-05IA0T-4A1024-C Incremental Encoder, Industrial Line

Product Details

Output function
RS422, with inverted signals
Shaft Type
Hollow shaft
Flange diameter
Ø 36.5 mm
Housing material
Aluminium chromated
Electrical connection
Cable
Protection class
IP65
Ambient temperature
-20…+85 °C
Resolution, incremental
1024 ppr
Output type
Incremental
Flange type
Flange with torque stop
Encoder line
Industrial-Line
Technology
Optical
Protection class shaft
IP50
Ambient Temperature
85 degrees celsius

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

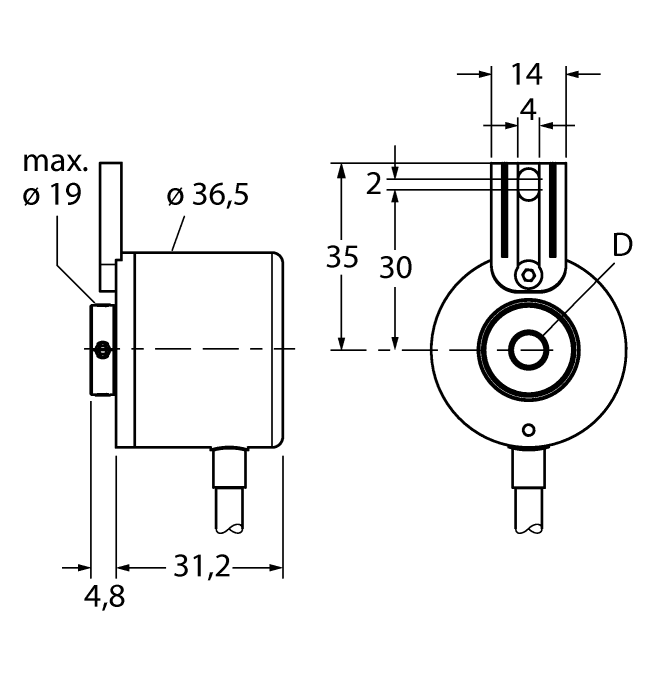

Incremental Encoder, Industrial Line, Resolution, incremental 1024 ppr, Flange with torque stop, Ø 36.5mm, Blind hole hollow shaft, Ø 1/4”, Optical measuring principle, Shaft material, brass, , Protection class IP50 on shaft side, ‐20…+85 °C, Max. 12000 rpm, 5 VDC, RS422 invertible, Pulse frequency max. 200 kHz, Cable connection, 1024 pulses per revolution

RI-05IA0T-4A1024-C Related Documents

English-1630966003676.pdf
