RI-10S6S-4A4096-12M23 Turck Industrial Automation Components

RI-10S6S-4A4096-12M23 on Powermatic Associates
Turck

Part#:RI-10S6S-4A4096-12M23

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Discontinued

Product description

RI-10S6S-4A4096-12M23 Turck - RI-10S6S-4A4096-12M23 Incremental Encoder, Industrial Line

Product Details

  • Technology
    Optical
  • Housing material
    Die-cast zinc
  • Encoder line
    Industrial-Line
  • Output type
    Incremental
  • Protection class shaft
    IP67
  • Electrical connection
    Connector
  • Flange type
    Synchro flange
  • Output function
    RS422, with inverted signals
  • Resolution, incremental
    4096  ppr
  • Flange diameter
    Ø  58  mm
  • Ambient temperature
    -40…+85 °C
  • Shaft Type
    Solid shaft
  • Protection class
    IP67
  • Shaft diameter D [mm]
    6  mm
  • Ambient Temperature
    -40 degrees celsius, 85 degrees celsius

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

About the product

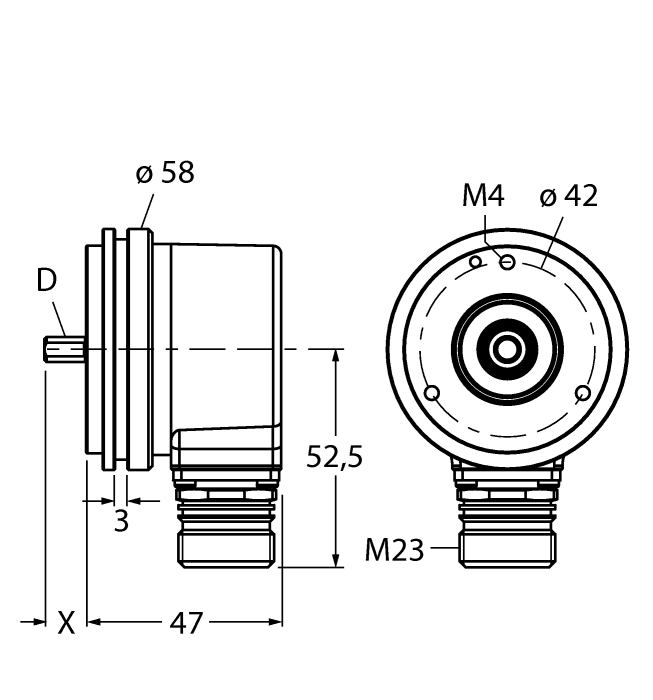

Incremental Encoder, Industrial Line, Resolution, incremental 4096 ppr, Servo flange, Ø 58 mm, Solid shaft, Ø 6mm x 10mm, Optical measuring principle, Shaft material, stainless steel, Protection class IP67 on housing and shaft side, ‐40…+85 °C, Max. 6000 rpm (continuous operation 3000 rpm), 5 VDC, Male connector, M23, 12-pole, RS422 with inverted signals, Pulse frequency max. 300 kHz, 4096 pulses per revolution

RI-10S6S-4A4096-12M23 Related Documents

English-1630965984819.pdf
