RI360P0-QR14-ELIU5X2-0.3-RS5/S1264 Turck Industrial Automation Components

RI360P0-QR14-ELIU5X2-0.3-RS5/S1264 on Powermatic Associates
Turck

Part#:RI360P0-QR14-ELIU5X2-0.3-RS5/S1264

Alt. Part#:1590871

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

RI360P0-QR14-ELIU5X2-0.3-RS5/S1264 Turck - RI360P0-QR14-ELIU5X2-0.3-RS5/S1264 Inductive Angle Sensor, With Analog Output, Premium Line

Product Details

  • Weight
    70 g
  • RoHS
    Yes
  • Country Of Origin
    DEU
  • HTS Code
    9032894000
  • Output function
    Analog output
  • Current output
    4…20 mA

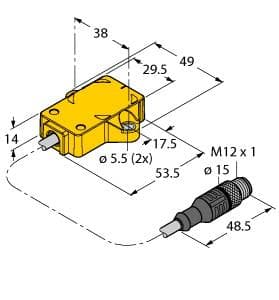

  • Construction size
    53.5 x 49 x 14 mm
  • Operating voltage
    15…30 VDC
  • Cable length (L)
    0.30  m
  • Technology
    Contactless
  • Measuring range
    0…360°
  • Ambient temperature
    -25…+70 °C
  • Output type
    Absolute singleturn
  • Shaft Type
    Blind hole shaft
  • Shaft diameter D [mm]
    6  mm6.35  mm
  • Protection class
    IP68/IP69K
  • Flange type
    Flange without mounting element
  • Electrical connection
    Cable with connector, M12 × 1
  • Voltage output
    0…10 V
  • Housing material
    Plastic, PBT-GF30-V0
  • Encoder line
    Premium-Line
  • Operating Voltage
    15 volts, 30 volts
  • Country of Origin
    Germany
  • Weight
    70 grams
  • Ambient Temperature
    -25 degrees celsius, 70 degrees celsius

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RI360P0-QR14-ELIU5X2-0.3-RS5/S1264 on Powermatic Associates is $283.00. Order now.

About the product

Inductive Angle Sensor, With Analog Output, Premium Line, Cable length (L) 0.3 m, Rectangular, plastic, Compact, rugged housing, Many mounting possibilities, Measuring range displayed via LED, Immune to electromagnetic interference, Resolution, 12-bit, Output signal returns to 0 V or rather 4 mA, provided the positioning element is outside the measuring range., 15…30 VDC, Analog output, Programmable measuring range, 0…10 V and 4…20 mA, Cable with male connector, M12 × 1

RI360P0-QR14-ELIU5X2-0.3-RS5/S1264 Related Documents

English-1630965847235.pdf
