RI360P0-QR24M0-ELIU5X2-H1151 Turck Industrial Automation Components

Name: RI360P0-QR24M0-ELIU5X2-H1151
Brand: Turck
Price: 399.2 USD
Availability: BackOrder

RI360P0-QR24M0-ELIU5X2-H1151 on Powermatic Associates

Part#:RI360P0-QR24M0-ELIU5X2-H1151

Alt. Part#:1590908

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

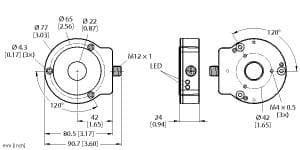

RI360P0-QR24M0-ELIU5X2-H1151 Turck - RI360P0-QR24M0-ELIU5X2-H1151 Contactless Encoder, Analog, Premium Line

Product Details

Weight
329 g
RoHS
Yes
Country Of Origin
DEU
HTS Code
9031804000
Construction size
81 x 78 x 24 mm
Encoder line
Premium-Line
Current output
4…20 mA
Technology
Contactless
Electrical connection
Connector, M12 × 1
Output type
Absolute singleturn
Shaft Type
Hollow shaft
Protection class
IP68/IP69K
Flange type
Flange without mounting element
Ambient temperature
-25…+85 °C
Measuring range
0…360°
Voltage output
0…10 V
Operating voltage
15…30 VDC
Output function
Analog output
Shaft diameter D [mm]
6 mm6.35 mm9.525 mm10 mm12 mm12.7 mm14 mm15.875 mm19.05 mm20 mm
Housing material
Metal/plastic, ZnAlCu1/PBT-GF30-V0

Ambient Temperature

-25 degrees celsius, 85 degrees celsius

Operating Voltage

15 volts, 30 volts

Country of Origin

Germany

Weight

329 grams

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RI360P0-QR24M0-ELIU5X2-H1151 on Powermatic Associates is $399.20. Order now.

About the product

Contactless Encoder, Analog, Premium Line, Compact, rugged housing, Many mounting possibilities, Status displayed via LED, Measuring range indicated via LED, Immune to electromagnetic interference, Measuring range programmable via Easy Teach, Output signal programmable via Easy Teach, Resolution, 16-bit, 15…30 VDC, 0…10 V and 4…20 mA, Male M12 x 1, 5-pin
