RI360P0-QR24M0-ELIU5X2-H1151/S1321 Turck Industrial Automation Components
Part#:RI360P0-QR24M0-ELIU5X2-H1151/S1321
Alt. Part#:1590976
Manufacturer:Turck
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

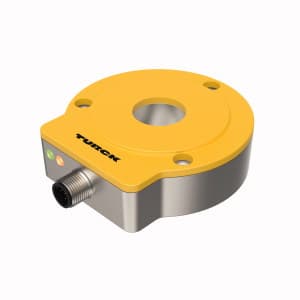

RI360P0-QR24M0-ELIU5X2-H1151/S1321 Turck - RI360P0-QR24M0-ELIU5X2-H1151/S1321 Contactless Encoder, Analog, Premium Line
Product Details
- Weight 329 g
- RoHS Yes
- Country Of Origin DEU
- HTS Code 9031808085
- Shaft Type Hollow shaft
- Encoder line Premium-Line
- Output function Analog output
- Output type Absolute singleturn
- Operating voltage 15…30 VDC
- Voltage output 0…10 V
- Flange type Flange without mounting element
- Housing material Metal/plastic, ZnAlCu1/PBT-GF30-V0
- Technology Contactless
- Current output 4…20 mA

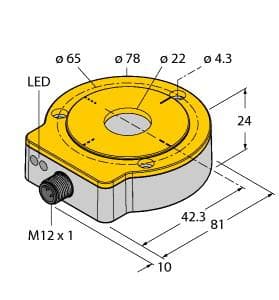

- Construction size 81 x 78 x 24 mm
- Protection class IP68/IP69K
- Shaft diameter D [mm] 6 mm6.35 mm9.525 mm10 mm12 mm12.7 mm14 mm15.875 mm19.05 mm20 mm
- Measuring range 0…360°
- Electrical connection Connector, M12 × 1
- Ambient temperature -25…+85 °C
- Ambient Temperature -25 degrees celsius, 85 degrees celsius
- Weight 329 grams
- Country of Origin Germany
- Operating Voltage 15 volts, 30 volts
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RI360P0-QR24M0-ELIU5X2-H1151/S1321 on Powermatic Associates is $475.00. Order now.
About the product
Contactless Encoder, Analog, Premium Line, Compact, rugged housing, Status displayed via LED, Special printing; marking 90°, 180° and 270°, , Measuring range indicated via LED, Immune to electromagnetic interference, Measuring range programmable via Easy Teach, Output signal programmable via Easy Teach, Resolution, 16-bit, 15…30 VDC, 0…10 V and 4…20 mA, Male M12 x 1, 5-pin
