RI40P1-QR20-LU4X2 Turck Industrial Automation Components

Name: RI40P1-QR20-LU4X2
Brand: Turck
Price: 165.7 USD
Availability: BackOrder

RI40P1-QR20-LU4X2 on Powermatic Associates

Part#:RI40P1-QR20-LU4X2

Alt. Part#:100000188

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

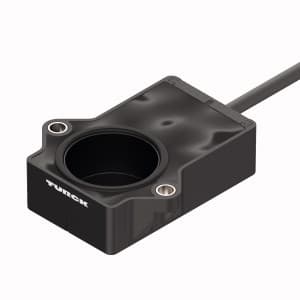

RI40P1-QR20-LU4X2 Turck - RI40P1-QR20-LU4X2 Miniature Encoder, With Analog Output, Premium Line

Product Details

Weight
175 g
RoHS
Yes
Country Of Origin
DEU
HTS Code
8536507000
Technology
Contactless
Shaft diameter D [mm]
6 mm6.35 mm
Output type
Absolute singleturn
Measuring range
-20…20°
Electrical connection
Cable
Construction size

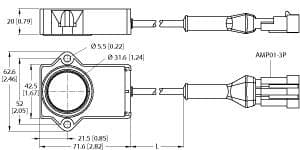

71.6 x 62.6 x 20 mm
Protection class
IP68/IP69K
Operating voltage
8…30 VDC
Cable length (L)
2.0 m
Shaft Type
Blind hole shaft
Output function
Analog output
Encoder line
Premium-Line
Voltage output
0.5…4.5 V
Flange type
Flange without mounting element
Ambient temperature
-40…+85 °C
Housing material
Plastic, Ultem

Country of Origin

Germany

Ambient Temperature

-40 degrees celsius, 85 degrees celsius

Operating Voltage

30 volts, 8 volts

Weight

175 grams

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RI40P1-QR20-LU4X2 on Powermatic Associates is $165.70. Order now.

About the product

Miniature Encoder, With Analog Output, Premium Line, Cable length (L) 2 m, Rectangular, plastic, Compact and robust housing, Versatile mounting possibilities, Positioning element P1-RI-QR20 included in delivery, For vehicle board nets, 12 V and 24 V, Increased interference immunity 100 V/m following the e1 type approval, Protection against conducted interference acc. to DIN ISO 7637-2 (SAE J 113-11), Extended temperature range, High protection class IP68/IP69K, Protection against salt spray and rapid temperature changes, Measuring range displayed via LED, Immune to electromagnetic interference, Resolution: 0.09°, , 3‐wire, 8…30 VDC, Analog output 0.5…4.5 V, Output 5 V (typ.) where there is no RLC coupling
