RI90P2-QR14-LIU5X2-0.3-RS4 Turck Industrial Automation Components

Name: RI90P2-QR14-LIU5X2-0.3-RS4
Brand: Turck
Price: 260.5 USD
Availability: BackOrder

RI90P2-QR14-LIU5X2-0.3-RS4 on Powermatic Associates

Part#:RI90P2-QR14-LIU5X2-0.3-RS4

Alt. Part#:1590833

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

RI90P2-QR14-LIU5X2-0.3-RS4 Turck - RI90P2-QR14-LIU5X2-0.3-RS4

Product Details

RoHS
Yes
Country Of Origin
DEU
HTS Code
8536507000
Flange type
Flange without mounting element
Voltage output
0…10 V

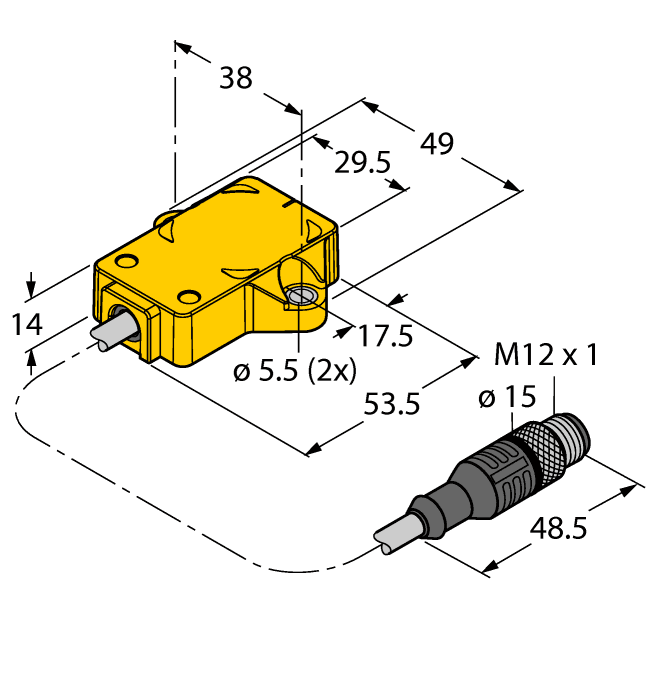

Construction size
53.5 x 49 x 14 mm
Ambient temperature
-25…+70 °C
Measuring range
0…90°
Protection class
IP68/IP69K
Electrical connection
Cable with connector, M12 × 1
Shaft Type
Blind hole shaft
Cable length (L)
0.30 m
Encoder line
Premium-Line
Output function
Analog output
Technology
Contactless
Operating voltage
15…30 VDC
Shaft diameter D [mm]
6 mm6.35 mm
Housing material
Plastic, PBT-GF30-V0
Output type
Absolute singleturn
Current output
4…20 mA

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RI90P2-QR14-LIU5X2-0.3-RS4 on Powermatic Associates is $260.50. Order now.
