RK 10T-2-RS 10T Turck Cordsets

RK 10T-2-RS 10T on Powermatic Associates
Turck
  • RK 10T-2-RS 10T
  • RK 10T-2-RS 10T

Part#:RK 10T-2-RS 10T

Alt. Part#:U0916-35

Manufacturer:Turck

Category:Cordsets

Product Lifecycle:Active

Product description

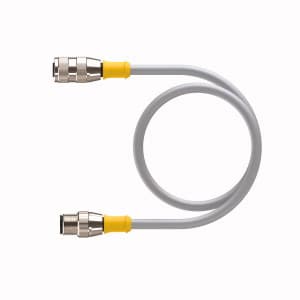

RK 10T-2-RS 10T Turck - RK 10T-2-RS 10T Actuator and Sensor Cordset, Extension Cable

Product Details

  • RoHS
    Yes
  • Country Of Origin
    MEX
  • HTS Code
    8544429090
  • Current
    2 amperes
  • Connector A - Number of Pins
    10
  • Voltage
    30 volts
  • Material coupling/housing A
    Brass
  • Connector A - Style
    Straight, Female
  • Approvals
    UL 2238, CSA C22.2 No. 182.3, CE, RoHS
  • Application
    Actuator and Sensor
  • Material coupling/housing B
    Brass
  • Cable Jacket Material
    PVC
  • Connector B
    M12 × 1
  • Number of Conductors
    10
  • Connector A
    M12 × 1
  • Connector B - Style
    Straight, Male
  • Cable Jacket Color
    Gray
  • Cable length (L)
    2.0  m
  • Length
    2.0 meters

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RK 10T-2-RS 10T on Powermatic Associates is $80.20. Order now.

About the product

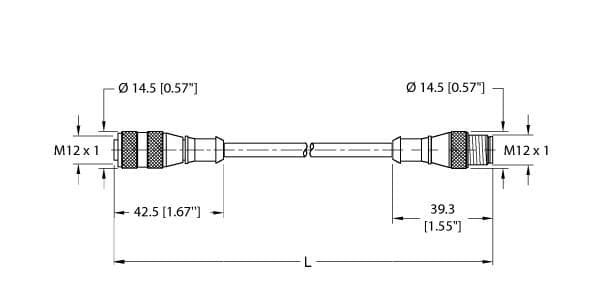

Actuator and Sensor Cordset, Extension Cable, Cable length (L) 2 m, M12, Female, Straight, 10-pin, M12, Male, Straight, 10-pin, IP68, IP69K, General Purpose Cable, Gray PVC jacket, 10X24 AWG, -40 Cold Bend Rating, Flame Ratings: UL1061, CSA FT1, Cable length: 2 m

RK 10T-2-RS 10T Related Documents

edb_U0916-35_eng_us.pdf
