RK 12T-2-RS 12T Turck Industrial Automation Components

Name: RK 12T-2-RS 12T
Brand: Turck
Price: 80.6 USD
Availability: BackOrder

RK 12T-2-RS 12T on Powermatic Associates

Part#:RK 12T-2-RS 12T

Alt. Part#:U0911-63

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

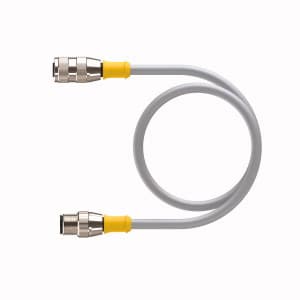

RK 12T-2-RS 12T Turck - RK 12T-2-RS 12T Actuator and Sensor Cordset, Extension Cable

Product Details

Weight
154 g
RoHS
Yes
Country Of Origin
MEX
HTS Code
8544429090
Connector A - Number of Pins
12
Connector A
M12 × 1
Number of Conductors
12
Application
Actuator and Sensor
Connector A - Style
Straight, Female
Approvals
UL 2238, CSA C22.2 No. 182.3, CE, RoHS
Connector B
M12 × 1
Cable Jacket Material
PVC
Connector B - Style
Straight, Male
Cable Jacket Color
Gray
Material coupling/housing B
Brass
Current
2 amperes
Voltage
30 volts
Material coupling/housing A
Brass
Cable length (L)
2.0 m
Country of Origin
Mexico

Length

2.0 meters

Weight

154.222 grams

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RK 12T-2-RS 12T on Powermatic Associates is $80.60. Order now.

About the product

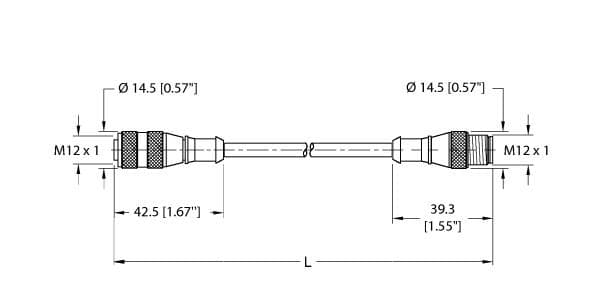

Actuator and Sensor Cordset, Extension Cable, Cable length (L) 2 m, M12, Female, Straight, 12-pin, M12, Male, Straight, 12-pin, IP68, IP69K, General Purpose Cable, Gray PVC jacket, 12X24 AWG, -40 Cold Bend Rating, Flame Ratings: UL1061, CSA FT1, Cable length: 2 m
