TNSLR-Q42TWD-H1147/C53 Turck Industrial Automation Components

TNSLR-Q42TWD-H1147/C53 on Powermatic Associates
Turck
  • TNSLR-Q42TWD-H1147/C53
  • TNSLR-Q42TWD-H1147/C53

Part#:TNSLR-Q42TWD-H1147/C53

Alt. Part#:7030733

Manufacturer:Turck

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

TNSLR-Q42TWD-H1147/C53 Turck - TNSLR-Q42TWD-H1147/C53 HF Read/Write Head, For Bus Line Topology with TBEN-*

Product Details

  • Weight
    143 g
  • Country Of Origin
    DEU
  • HTS Code
    8471804000
  • Suitable for bus mode to TBEN-*.
    Yes
  • Technology
    HF (13.56 MHz)
  • Protection class
    IP68/IP69K
  • Read/Write distance max.
    215 mm
  • Design
    Rectangular
  • Ambient temperature
    -25…+70 °C
  • Radio communication and protocol standards
    ISO 15693, NFC Typ 5
  • Mounting
    Non-flush
  • Fieldbus Protocol
    Connection to RFID interface

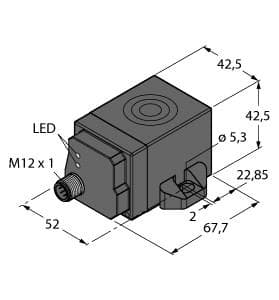

  • Construction size
    67.7 x 42.5 x 42.5 mm, Q42
  • Ambient Temperature
    -25 degrees celsius, 70 degrees celsius
  • Country of Origin
    Germany
  • Weight
    143 grams

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TNSLR-Q42TWD-H1147/C53 on Powermatic Associates is $1,065.90. Order now.

About the product

HF Read/Write Head, For Bus Line Topology with TBEN-*, Non-flush, Rectangular, height 42.5 mm, Active face on top, Plastic, PA12-GF30, Device without end termination, Device may only be operated in line topology TBEN-S*-2RFID-* or TBEN-L*-4RFID-*, Max. 32 nodes per line or connection permitted, Use a corresponding terminating resistor (see accessories), Observe the performance of the power supply, especially when turned on, and the maximum current carrying capacity of the cables, Observe the voltage drop on the line, The maximum possible length of the spur line is 2 m, The maximum possible length of the bus is 50 m, By default, a command can only be processed by one read/write head, making HF bus mode suitable for static applications and slow dynamic applications, In continuous HF bus mode, a command is executed simultaneously on all read/write heads in a bus topology. The recorded data is stored in the ring buffer of the module, The read/write head is automatically assigned an address, For different application requirements, the address and can be parameterized

TNSLR-Q42TWD-H1147/C53 Related Documents
