231-604 WAGO Industrial Automation Components

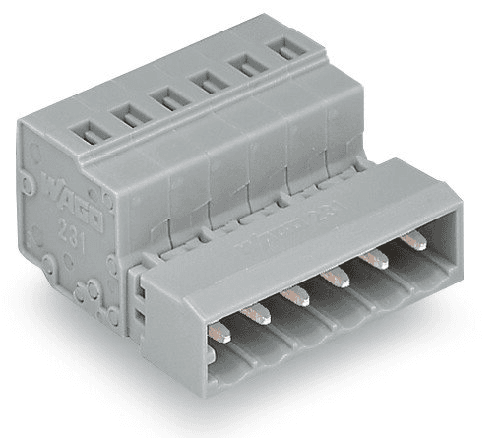

WAGO 231-604 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as specified in DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 320V and 630V under different conditions, rated impulse voltage of 4kV, and a rated current of 12A. UL and CSA approvals are included, with ratings varying by use group, including a UL rated voltage of 600V and rated current of 15A under UL 1977. It features 4 connection points, a single connection type with CAGE CLAMP technology, and supports solid and fine-stranded conductors ranging from 0.08 to 2.5mm2 or 28 to 12 AWG, with specific capacities for ferruled conductors. The connector has a 4-pole configuration, 5mm pin spacing, and dimensions of 23.2mm in width, 14.3mm in height, and 27.5mm in depth. It includes variable coding, anti-rotation protection, and is made from Polyamide (PA66) with a flammability class of UL94 V0. The contact material is Electrolytic Copper with a tin plating. It operates within a temperature range of -60 to +100°C and is RoHS compliant. The product is packaged in boxes of 100 pieces, with a country of origin in Germany and a GTIN of 4044918256896.
