234-503 WAGO Industrial Automation Components
Part#:234-503
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

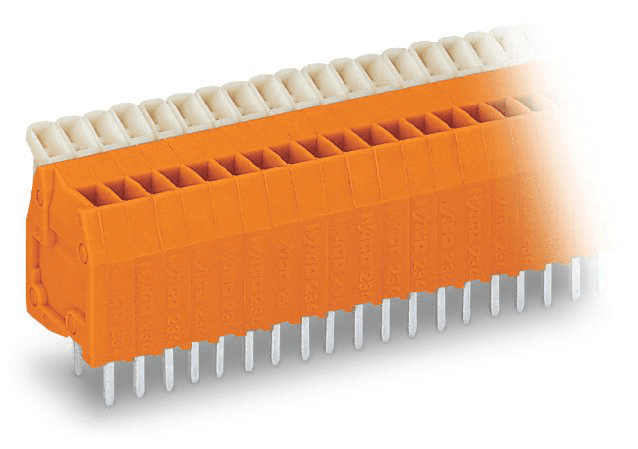

234-503 WAGO - PCB terminal block; push-button; 0.5 mm²; Pin spacing 2.54 mm; 3-pole; CAGE CLAMP®; 0,50 mm²; orange
Product Details
- Weight 1.624000427 g
- Country Of Origin Switzerland
- HTS Code 85369010000
- Insulation Material Polyamide
- Color Orange
- Strip Length 0.24 inches, 6 millimeters
- Conductor Size 0.5 millimeters, 20 american wire gauge
- Voltage 150 volts, 63 volts
- Contact Type Tin
- Weight 1.624 grams
- Actuator Push-button
- Height 0.709 inches, 18 millimeters
- Contact Material Copper
- Width 0.387 inches, 9.82 millimeters
- Package Type Box
- Current 4 amperes, 6 amperes
- Flammability Class V0
- Depth 0.567 inches, 14.4 millimeters
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 234-503 on Powermatic Associates is $1.66. Order now.
About the product
WAGO 234-503 is a printed circuit connector with a short circuit breaking rating as per IEC/EN 60664-1. It features nominal voltages of 63V (III/3), 160V (III/2), and 320V (II/2), with a rated impulse voltage of 2.5kV for all categories and a rated surge voltage of 2.5kV (II/2). The connector has a rated current of 6A according to IEC/EN standards, and it is designed for overvoltage category III / Pollution degree 2. Under UL 1059 standards, it has a rated voltage of 150V and a rated current of 4A for Use Group B, which is mirrored in its CSA ratings. The connector accommodates 3 connection points, with a total of 3 potentials and utilizes CAGE CLAMP technology with push-button actuation for solid and fine-stranded conductors ranging from 0.08 to 0.5mm2 / 28 to 20 AWG, including fine-stranded conductors with both insulated and uninsulated ferrules at 0.25mm2. The strip length for connections is 5 to 6mm / 0.2 to 0.24", and the conductor connection direction to the PCB is at 90 degrees. It has a pole number of 3, pin spacing of 2.54mm / 0.1", and dimensions including a width of 9.82mm / 0.387", height of 18mm / 0.709", depth of 14.4mm / 0.567", and a height from the surface of 14mm / 0.551". The solder pin length is 4mm, with dimensions of 0.5 x 0.75mm and a drilled hole diameter with tolerance of 1.1 (+0.1)mm. The PCB contact is through-hole technology (THT) with an in-line solder pin arrangement and two solder pins per potential. The connector is orange, made from Polyamide (PA66) with a flammability class of V0, and uses Chrome-Nickel spring steel (CrNi) for the clamping spring and Electrolytic Copper (ECu) with tin plating for contacts. It has a fire load of 0.025MJ and weighs 1.6g. It operates within a temperature range of -60 to +105°C. Packaged in boxes, it comes in quantities of 520 (130) pcs per box, with a country of origin of CH and a GTIN of 4044918652117. It complies with RoHS without exemptions.
