234-510 WAGO Industrial Automation Components
Part#:234-510
Manufacturer:WAGO
Category:Industrial Automation Components
Product Lifecycle:Active
Product description

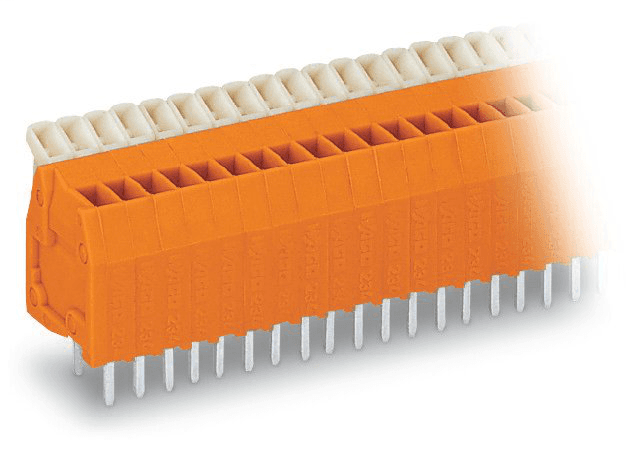

234-510 WAGO - PCB terminal block; push-button; 0.5 mm²; Pin spacing 2.54 mm; 10-pole; CAGE CLAMP®; 0,50 mm²; orange
Product Details
- Weight 5.103001342 g
- Country Of Origin Switzerland
- HTS Code 85369010000
- Flammability Class V0
- Conductor Size 0.5 millimeters, 20 american wire gauge
- Strip Length 0.24 inches, 6 millimeters
- Current 4 amperes, 6 amperes
- Color Orange
- Voltage 150 volts, 63 volts
- Height 0.709 inches, 18 millimeters
- Contact Type Tin
- Width 1.087 inches, 27.6 millimeters
- Actuator Push-button
- Package Type Box
- Insulation Material Polyamide
- Depth 0.567 inches, 14.4 millimeters
- Contact Material Copper
- Weight 5.103 grams
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 234-510 on Powermatic Associates is $5.20. Order now.
About the product
WAGO 234-510 is an automation part with a short circuit breaking rating as per IEC/EN 60664-1. It features nominal voltages of 63V (III/3), 160V (III/2), and 320V (II/2), with a rated impulse voltage of 2.5kV for all categories and a rated surge voltage of 2.5kV (II/2). The rated current is 6A according to IEC/EN standards, and it has UL 1059 approval with a rated voltage of 150V and rated current of 4A for UL (Use Group B), matching CSA ratings. This part includes 10 connection points, all utilizing CAGE CLAMP technology with push-button actuation. It supports solid and fine-stranded conductors ranging from 0.08 to 0.5mm2 (28 to 20 AWG), with specific accommodations for fine-stranded conductors with insulated or uninsulated ferrules at 0.25mm2. The strip length for connections is between 5 and 6mm, and the conductor connection direction to the PCB is 90 degrees. It has a pin spacing of 2.54mm, dimensions of 27.6mm in width, 18mm in height, 14mm height from the surface, and 14.4mm in depth, with solder pin length of 4mm. The solder pins are 0.5 x 0.75mm, designed for through-hole technology (THT) soldering with an in-line arrangement over the entire terminal strip. The part is orange, made from Polyamide (PA66) with a V0 flammability class per UL94, and uses Chrome-Nickel spring steel for the clamping spring and Electrolytic Copper with tin plating for contacts. It operates within a temperature range of -60 to +105°C, weighs 5.1g, and is RoHS compliant without exemptions. The product is packaged in boxes of 180 pieces, with a country of origin of CH and a GTIN of 4044918652186.
