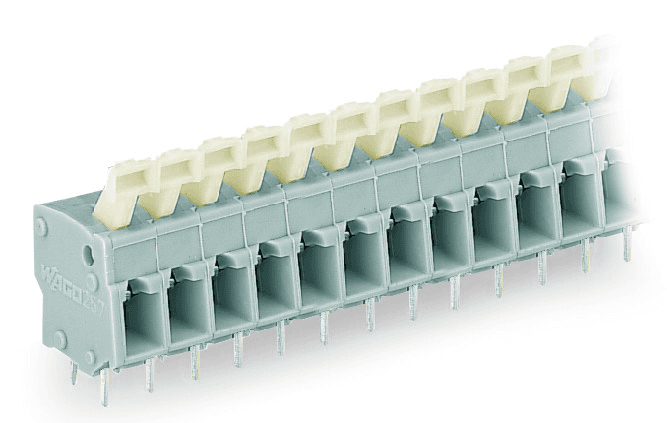

257-405/000-009/999-950 WAGO Industrial Automation Components

257-405/000-009/999-950 on Powermatic Associates
WAGO

Part#:257-405/000-009/999-950

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

257-405/000-009/999-950 WAGO - 257-405/000-009/999-950

Product Details

  • Actuator
    Push-button
  • Strip Length
    0.24 inches, 6 millimeters
  • Height
    0.961 inches, 24.4 millimeters
  • Conductor Size
    12 american wire gauge, 2.5 millimeters
  • Weight
    5.840 grams
  • Contact Type
    Tin
  • Insulation Material
    Polyamide
  • Flammability Class
    V0
  • Depth
    0.559 inches, 14.2 millimeters
  • Contact Material
    Copper
  • Color
    Gray
  • Width
    1.098 inches, 27.9 millimeters
  • Package Type
    Box

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
