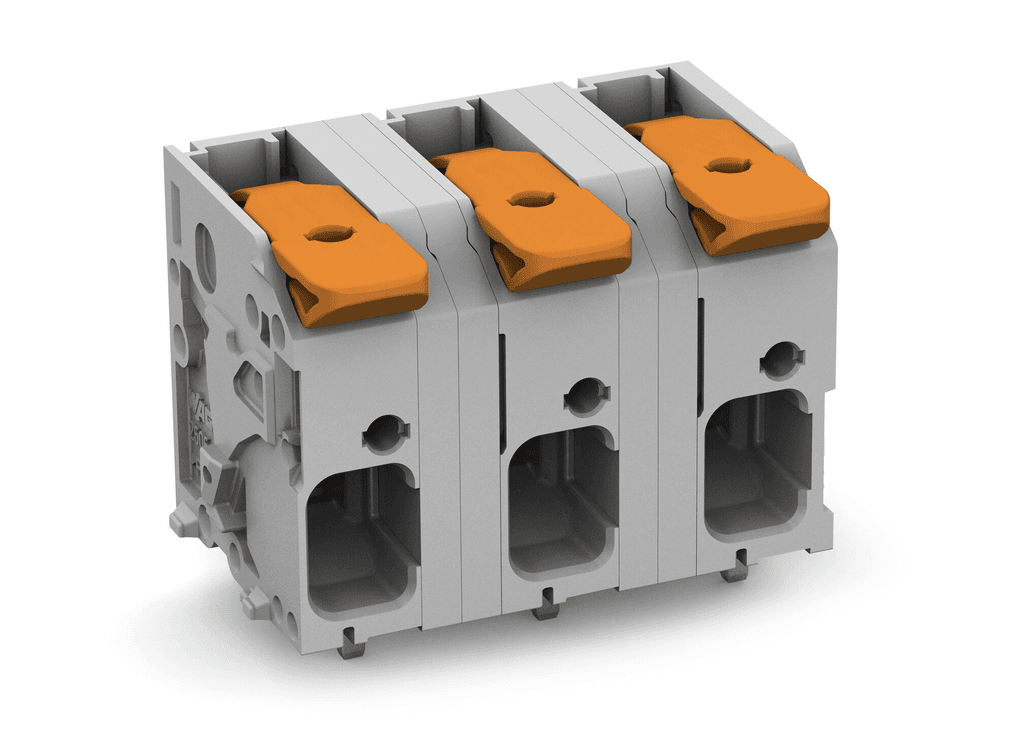

2606-1356 WAGO Terminal Blocks

WAGO 2606-1356 is an automation part with a short circuit breaking rating and electrical data compliant with IEC/EN 60664-1 standards. It features a nominal voltage of 800V (III/3), 1000V (III/2), and 1000V (II/2), with a rated impulse voltage of 8kV for both III/3 and III/2 overvoltage categories, and a rated surge voltage of 8kV for II/2. The rated current is 41A according to IEC/EN standards. Under UL 1059 approvals, it has a rated voltage of 600V and a rated current of 42A for both Use Group B and C. CSA approvals indicate a rated voltage of 600V and a rated current of 31A for both Use Group B and C. The part includes 6 connection points, with a total of 6 potentials and 1 connection type across 1 level, utilizing Push-in CAGE CLAMP technology with lever actuation. It accommodates solid and fine-stranded conductors ranging from 0.2 to 10mm2 (24 to 8 AWG), including various ferrule types. The strip length for connection is between 11 to 13mm, with a conductor connection direction to PCB at 0° and a pole number of 6. Physical specifications include a pin spacing of 12.5mm, width of 71.5mm, height of 28mm, height from the surface of 24mm, and solder pin length of 4mm. The part is gray, made from Polyamide (PA66) with a flammability class of V0, and features chrome-nickel spring steel for the clamping spring and electrolytic copper with tin plating for contacts. It operates within a temperature range of -60 to +105°C, with a processing temperature range of -35 to +60°C. The part is RoHS compliant, packaged in boxes of 34 pieces, and has a GTIN of 4055143862004.
