2606-3101 WAGO Industrial Automation Components

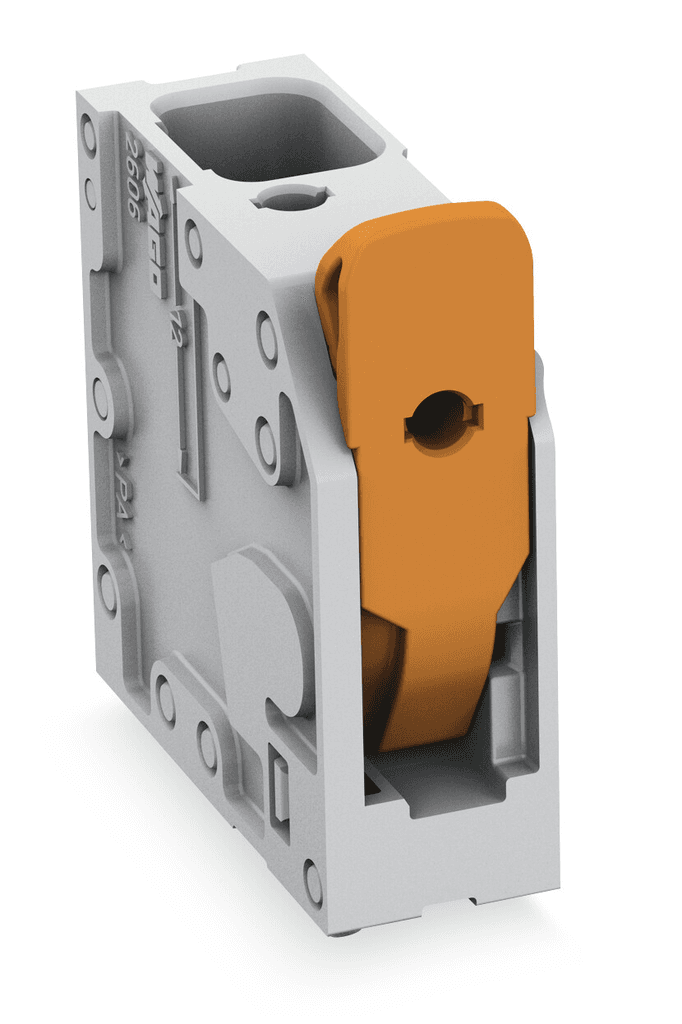

WAGO 2606-3101 is a single-pole PCB terminal block designed for a nominal voltage of 1000V as per IEC/EN 60664-1, with a rated impulse voltage of 8kV and a rated current of 41A. It features a push-in CAGE CLAMP connection with a lever actuation type, accommodating solid and fine-stranded conductors ranging from 0.2 to 10mm2 (24 to 8 AWG), including fine-stranded conductors with insulated, uninsulated, and twin ferrules. The strip length for connection is between 11 to 13mm, and the conductor connection direction to the PCB is 90 degrees. It has a pin spacing of 7.5mm, dimensions of 10.35mm in width, 31mm in height, 27mm height from the surface, and 24mm in depth, with a solder pin length of 4mm. The terminal block is made from Polyamide (PA66) with a flammability class of V0, featuring chrome-nickel spring steel for the clamping spring, electrolytic copper with tin plating for the contacts, and is colored gray with an orange actuator. It operates within a temperature range of -60 to +105°C and weighs 5g. This product is RoHS compliant, packaged in boxes of 200 pieces, and has a GTIN of 4055143586580.
