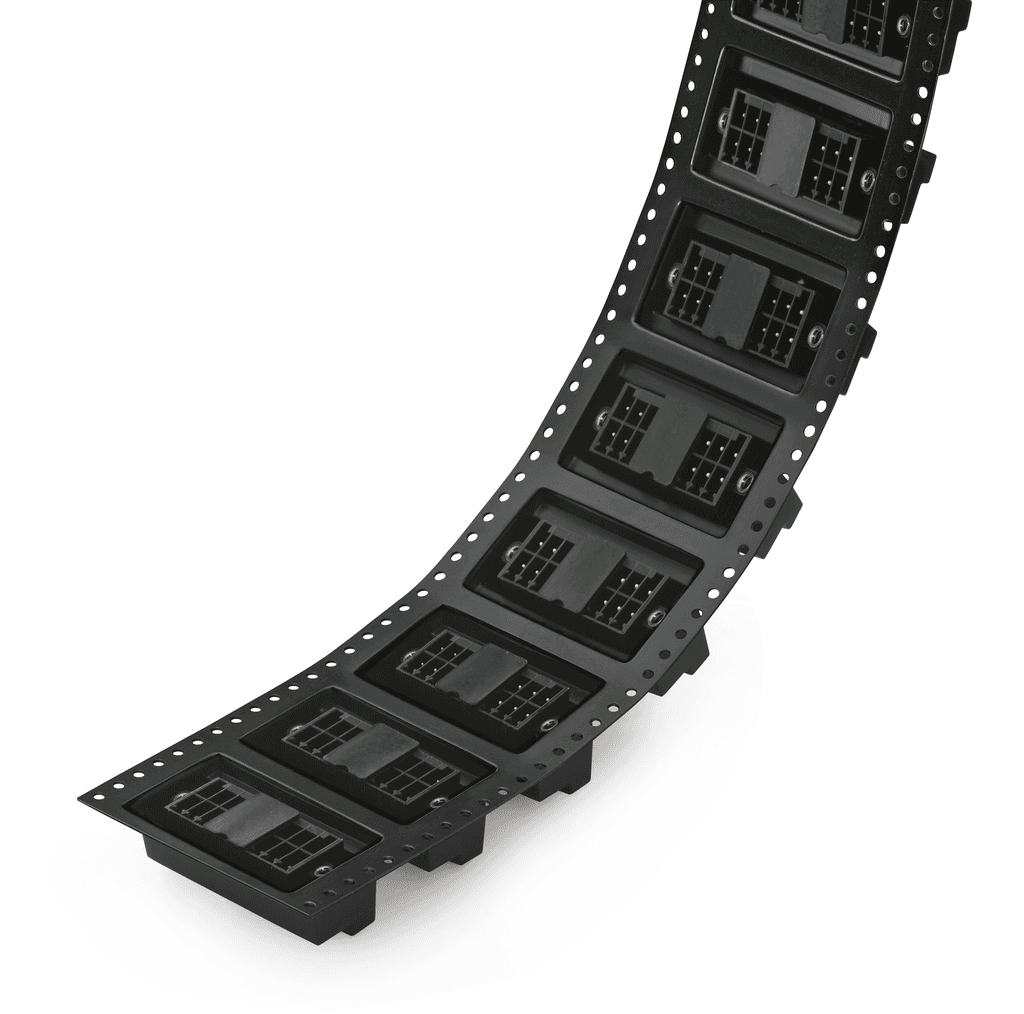

713-1414/117-000/997-408 WAGO Electrical Connector Accessories

WAGO 713-1414/117-000/997-408 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating that these connectors should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 80V (III/3), 160V (III/2), and 250V (II/2), rated impulse voltages of 2.5kV for both III/2 and III/3 categories, and a rated current of 10A. UL and CSA ratings include a 150V rated voltage and 10A rated current for UL Use Group B, 50V rated voltage and 10A rated current for UL Use Group C, and a 150V rated voltage and 12A rated current for CSA Use Group B. The connector features 28 potentials, a single connection type, two levels, and a 28 pole number for connection 1. Physical specifications include a 3.5mm pin spacing, dimensions of 59.1mm width, 15.9mm height, 13.3mm depth, and a solder pin length of 2.4mm. It offers variable coding, anti-rotation protection, male connector/plug type for PCB with mismating protection, threaded flange locking, and is designed for 90° mating direction to the PCB. The material is black Polyphthalamide (PPA GF) with a UL94 V0 flammability class, electrolytic copper contact material with tin plating, and weighs 7.6g. It operates within a -60...+100°C temperature range, with a processing temperature of -35...+60°C. The product is RoHS compliant with exemption 6(c), and includes SCIP notification numbers for multiple EU countries. Packaged in bags of 120 pieces, it has a GTIN of 4050821308928 and a customs tariff number of 85366930000, indicating its origin in Germany.
