713-1437 WAGO Industrial Automation Components

713-1437 on Powermatic Associates
WAGO

Part#:713-1437

Manufacturer:WAGO

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

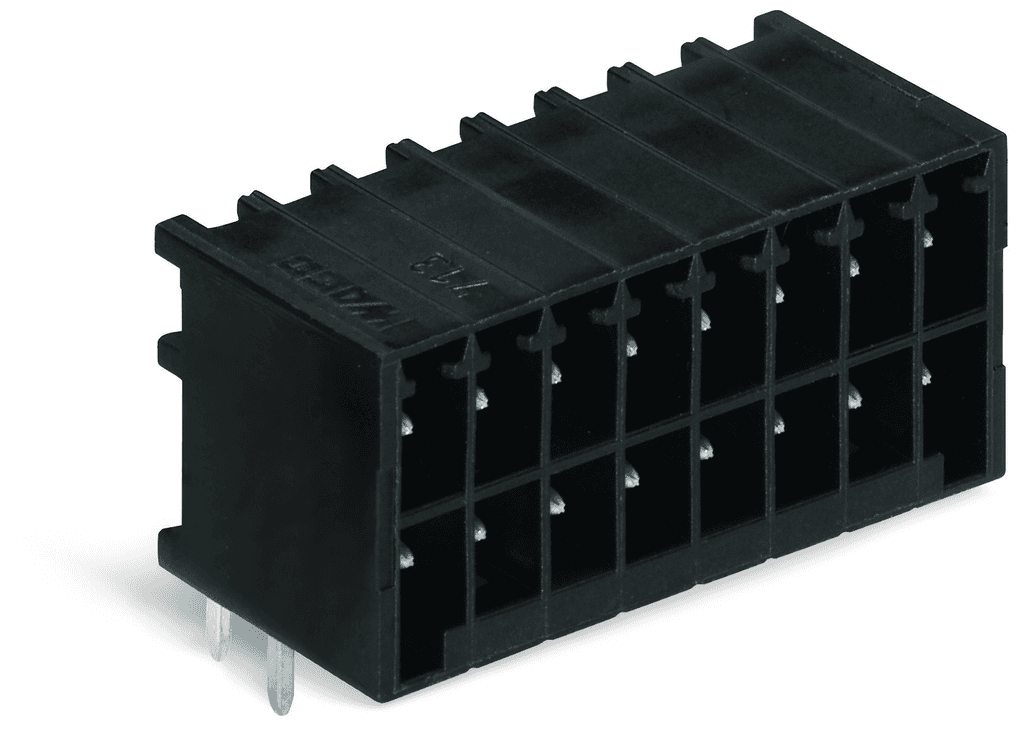

713-1437 WAGO - THT male header, 2-row; 0.8 x 0.8 mm solder pin; angled; 100% protected against mismating; Pin spacing 3.5 mm; 34-pole; black

Product Details

  • Weight
    9.080002388 g
  • Country Of Origin
    Poland
  • HTS Code
    85366990990
  • Color
    Black
  • Voltage
    150 volts, 80 volts
  • Flammability Class
    V0
  • Depth
    0.531 inches, 13.5 millimeters
  • Current
    10 amperes, 10 amperes
  • Weight
    9.080 grams
  • Insulation Material
    Polyphthalamide
  • Country of Origin
    Poland
  • Contact Material
    Copper
  • Package Type
    Box
  • Contact Type
    Tin
  • Width
    2.402 inches, 61 millimeters
  • Connection Type
    For PCB
  • Height
    0.673 inches, 17.1 millimeters

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 713-1437 on Powermatic Associates is $11.85. Order now.


About the product

WAGO 713-1437 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 80V (III/3), 160V (III/2), and 250V (II/2), rated impulse voltage of 2.5kV across these categories, and a rated current of 10A. UL and CSA approvals are included, with UL ratings of 150V and 10A for Use Group B, 50V and 10A for Use Group C, and CSA ratings of 150V and 12A for Use Group B. It features 34 potentials, a single connection type across two levels, and a male connector/plug design for PCB with THT PCB contact, in-line solder pin arrangement, and one solder pin per potential. The connector has a pin spacing of 3.5mm, dimensions of 61mm in width, 17.1mm in height, 13.5mm in depth, with a solder pin length of 3.8mm and dimensions of 0.8 x 0.8mm. It includes variable coding, anti-rotation protection, and mismating protection but lacks plugging without loss of pin spacing and locking of plug-in connection. The material is black Polyphthalamide (PPA GF) with a flammability class of UL94 V0, contacts made from Electrolytic Copper (ECu) plated with tin, and it has a fire load of 0.176MJ and weighs 9.1g. It operates within a temperature range of -60 to +100°C, with a processing temperature range of -35 to +60°C. Packaged in boxes of 20 pieces, it is RoHS compliant without exemptions, has a GTIN of 4045454700287, and is manufactured in Poland with a customs tariff number of 85366930000.


Manufacturer warranty

713-1437 WAGO

$11.85

Your price can be lower.
Log in or Create account to check your discount

Select Qty:

$11.85

$11.85 each

Average response time: 11 minutes

Worldwide Shipping and Delivery


Secure Payment Processing


Warranty


Responsive Customer Support

Got Questions? We've Got Answers!


Need more details?

Feel free to chat with us
