713-1433 WAGO Industrial Automation Components

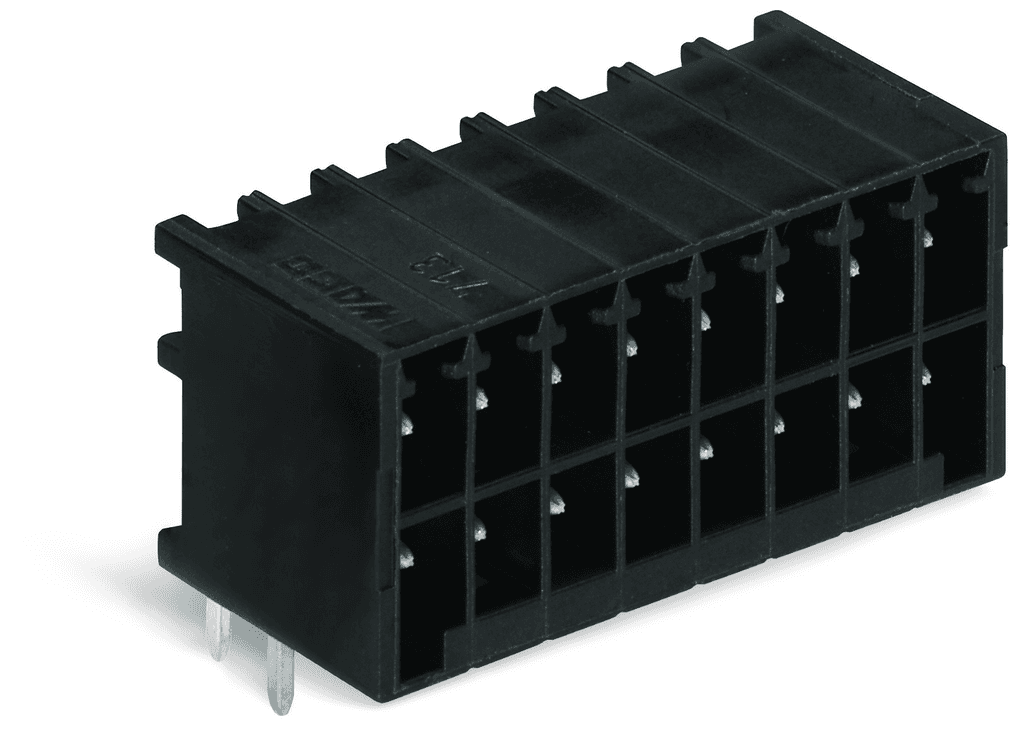

WAGO 713-1433 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 80V (III/3), 160V (III/2), and 250V (II/2), all with a rated impulse voltage of 2.5kV and a rated current of 10A. UL 1059 approvals include rated voltages of 150V (Use Group B) and 50V (Use Group C), both with a rated current of 10A. CSA approvals feature a rated voltage of 150V (Use Group B) and a rated current of 12A. This connector has 26 potentials, one connection type, two levels, and a pole number of 26. Physical specifications include a pin spacing of 3.5mm, dimensions of 47mm in width, 17.1mm in height, 13.5mm in depth, with a solder pin length of 3.8mm and dimensions of 0.8 x 0.8mm. It features variable coding, anti-rotation protection, male connector/plug type for PCB with mismating protection, and THT PCB contact. The insulation material is Polyphthalamide (PPA GF), with a flammability class of V0, contact material of Electrolytic Copper (ECu), and tin plating. It operates within a temperature range of -60 to +100°C, has a fire load of 0.137MJ, and weighs 7.2g. Packaged in boxes of 25 pieces, it is RoHS compliant with no exemptions, has a GTIN of 4045454700249, and is manufactured in Poland.
