722-236/005-000 WAGO Industrial Automation Components

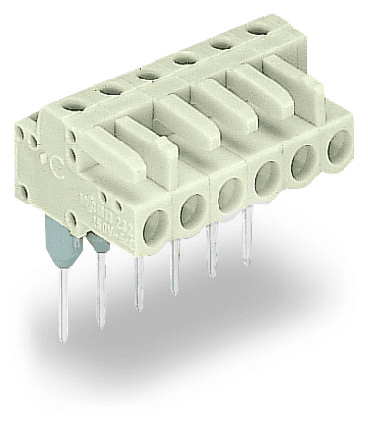

WAGO 722-236/005-000 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as per DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 320V (III/3) and 630V (II/2), rated impulse voltage of 4kV, and a rated current of 12A. UL and CSA approvals include a rated voltage of 300V and rated currents of 15A (Use Group B) and 10A (Use Group D), with UL 1977 specifications listing a rated voltage of 600V and a rated current of 15A. It features a total of 6 potentials, a single connection type, and one level, with a pole number of 6 for connection 1. The physical dimensions include a pin spacing of 5mm, width of 31.5mm, height of 26.1mm, height from the surface of 11.6mm, and depth of 18.25mm. It offers variable coding, anti-rotation protection, and is made from light gray Polyamide (PA66) with a flammability class of UL94 V0. The contact material is a copper alloy with tin plating. It operates within a temperature range of -60 to +85°C and has a processing temperature range of -35 to +60°C. The product is RoHS compliant, packaged in boxes of 50 pieces, and has a GTIN of 4044918570503.
