722-835 WAGO Industrial Automation Components

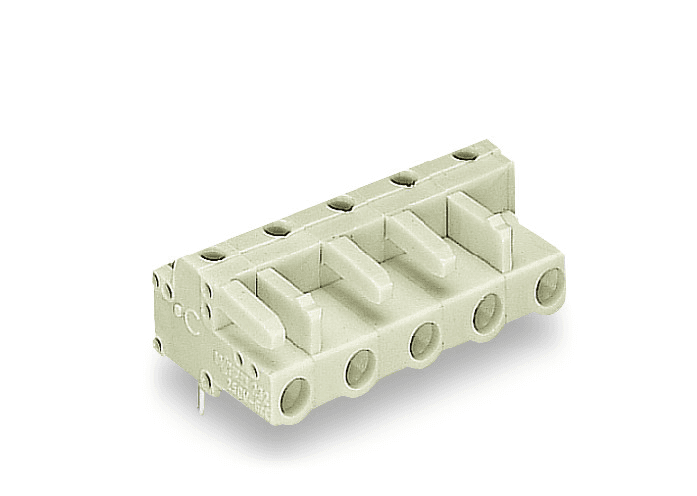

WAGO 722-835 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as specified in DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 500V (III/3), 630V (III/2), and 1000V (II/2), and a rated impulse voltage of 6kV across these categories. The rated current is 12A according to IEC/EN standards. Under UL 1059 and UL 1977, it has a rated voltage of 300V for Use Group B and D, with rated currents of 15A and 10A respectively, and a 600V rating with a 15A current under UL 1977. CSA approvals mirror the UL ratings for voltage and current. This connector features a total of 5 potentials, a single connection type across one level, and a 5 pole number. Physical specifications include a pin spacing of 7.5mm, dimensions of 36.5mm in width, 16.6mm in height, 18.25mm in depth, with a solder pin length of 5mm and dimensions of 0.6 x 1mm. It offers variable coding, anti-rotation protection, and is designed as a female connector/socket for PCB with mismating protection but no locking mechanism. The connector is made from light gray Polyamide (PA66), with a copper alloy contact material and tin plating. It operates within a temperature range of -60 to +85°C and has a processing temperature range of -35 to +60°C. Packaged in boxes of 50 pieces, it is RoHS compliant without exemptions, and its country of origin is DE, with a GTIN of 4044918581042.
