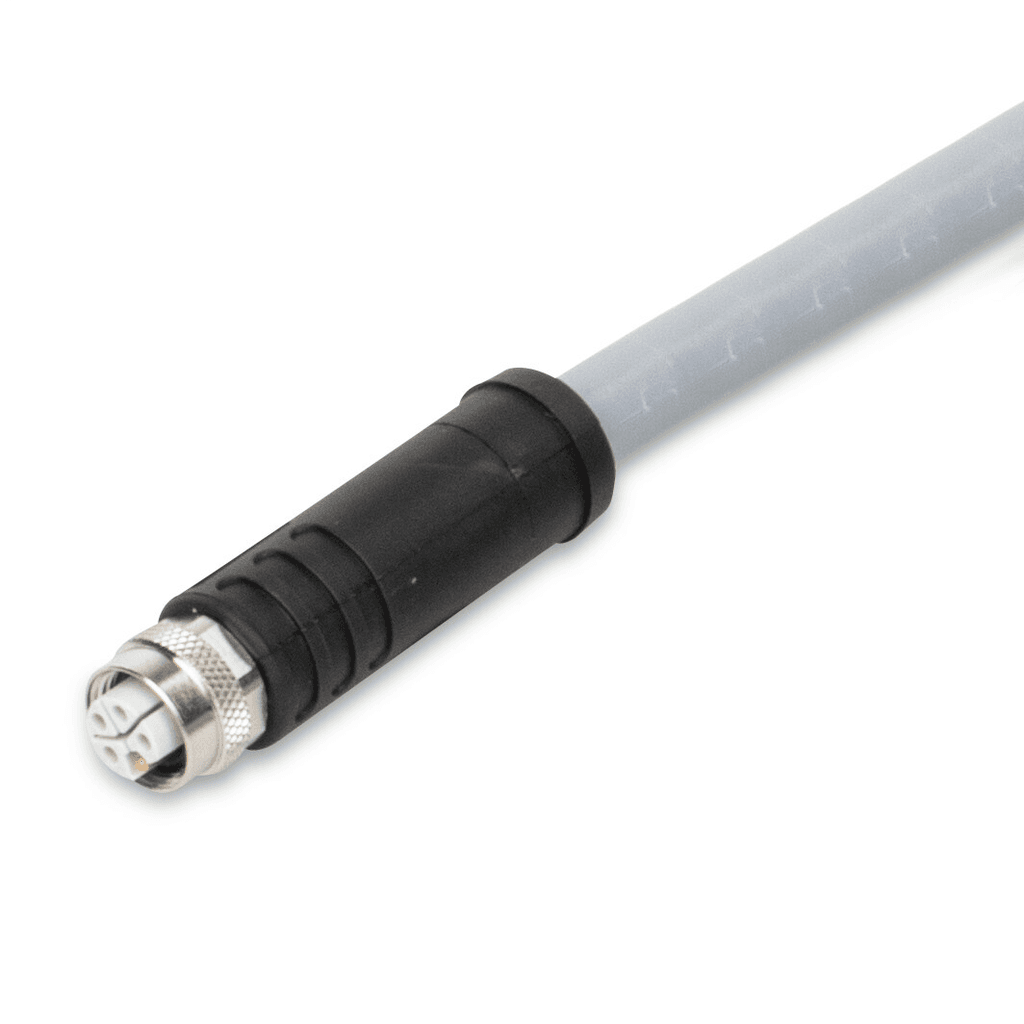

756-3501/050-150 WAGO Industrial Automation Components

WAGO 756-3501/050-150 is an automation part with an operating voltage of 63 VDC per IEC 60664-1, an operating current of 16A, and a rated surge voltage of 1.5kV per IEC 61076-2-111. It features an insulation resistance of ≥10^8Ω and a contact resistance of 5mΩ. The conductor resistance is ≤13.7Ω/km, and it has a pollution degree of 3 per IEC 60664-1. This part is designed with protection type IP68 and can operate in ambient temperatures ranging from -40 to +90°C, with a maximum of +80°C as per UL for certain applications. It is compatible with drag chains, supporting ambient air operating temperatures from -25 to +60°C, a fixed bending radius of more than 4 times the diameter, and flexible bending cycles of 10 million. The cable length is 15m, with a conductor configuration of bare copper wire (84 x 0.15mm) and conductor insulation of PP9Y (halogen-free). The sheathed cable is gray, with a diameter of 9.6 to 10.2mm, and the connection type is an M12 socket to a free end with a 5 pole number. The connector interface coding is L-coded, and the housing material is TPU/TPU in black (RAL 9005) with a hexagon knurled nut CuZn and a nickel-plated surface. The sealing ring is made of FPM/FKM, and the tightening torque is 1Nm. This product is compliant with RoHS, with no exemption required, and is manufactured by WAGO.
