831-3645 WAGO Industrial Automation Components

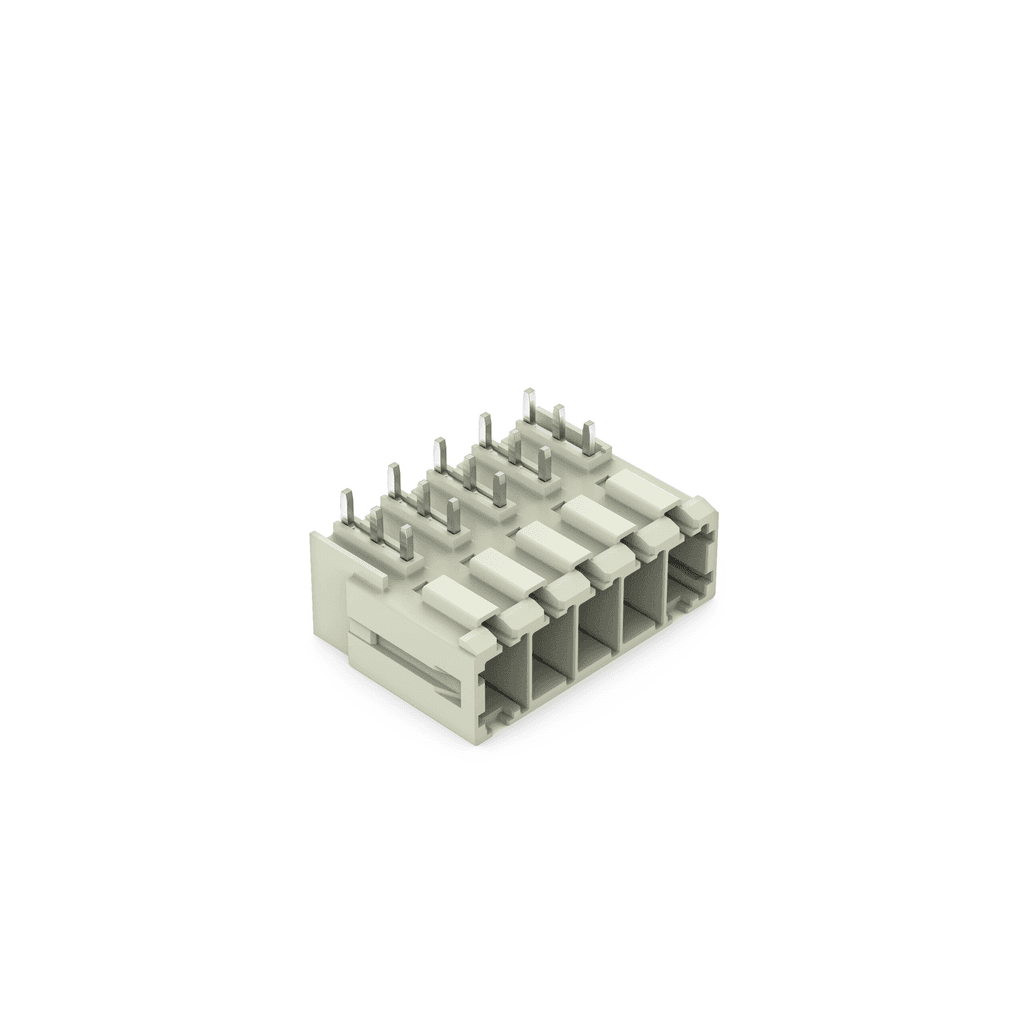

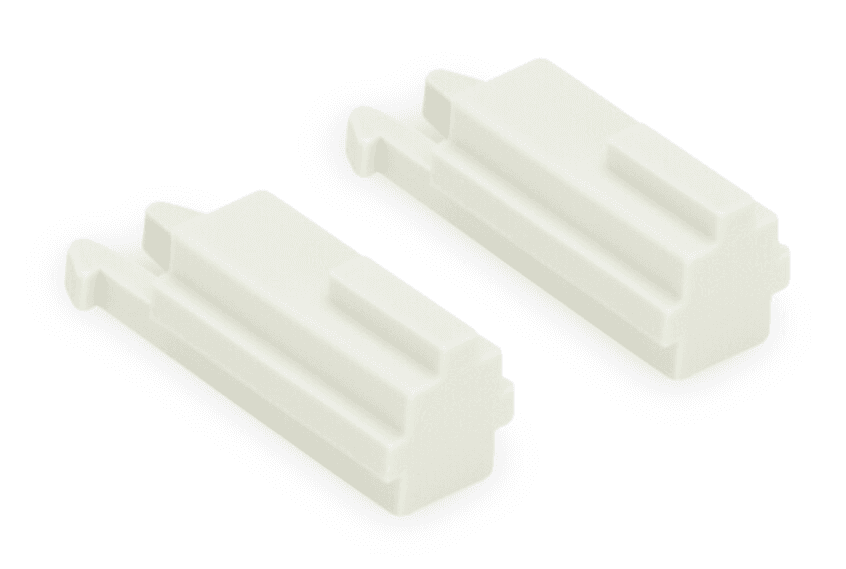

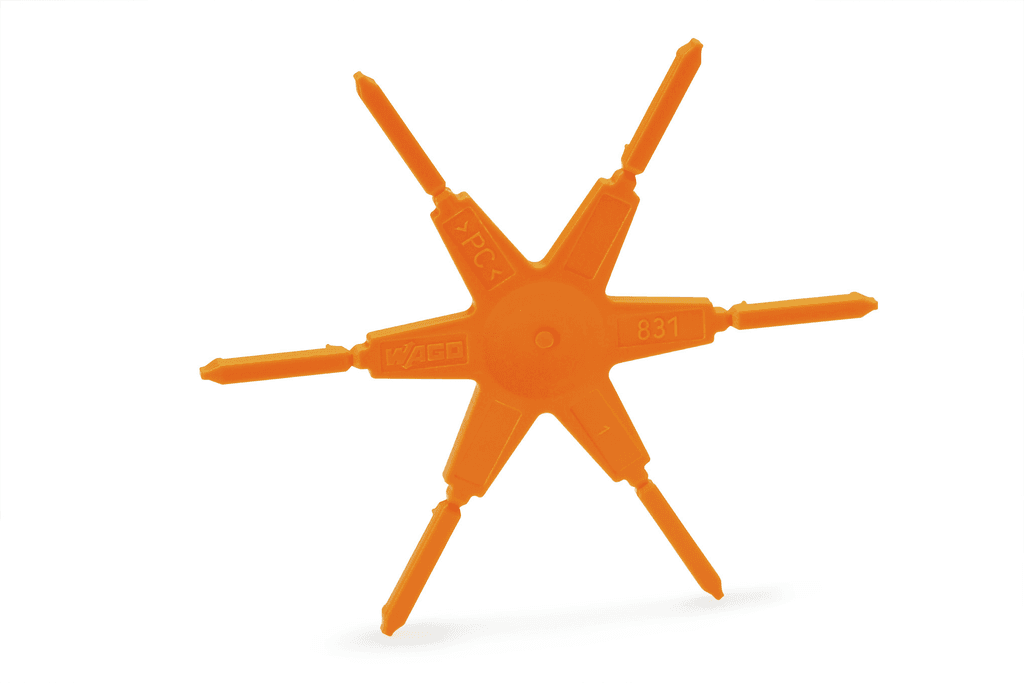

WAGO 831-3645 is a connector part of the MCS - MULTI CONNECTION SYSTEM, designed without breaking capacity as specified in DIN EN 61984, indicating it should not be connected or disconnected under load or when live. It adheres to IEC/EN 60664-1 standards, with nominal voltages of 500V (III/3), 630V (III/2), and 1000V (II/2), and a rated impulse voltage of 6kV across these categories. The rated current is 41A, with overvoltage category III and pollution degree 2. UL 1059 approvals include rated voltages of 300V and 600V for Use Groups C and D respectively, with corresponding rated currents of 42A and 5A. CSA approvals mirror these ratings. This part features a total of 5 potentials, one connection type, and one level, with a 5-pole number for connection 1. Physical specifications include a pin spacing of 7.62mm, solder pin length of 4mm, and drilled hole diameter of 1.7mm (+0.1). It offers variable coding, anti-rotation protection, and mismating protection, with a male connector/plug type for PCB connection, without locking. The PCB contact is THT with an in-line solder pin arrangement, and three solder pins per potential. Made from light gray Polyamide (PA66) with a flammability class of UL94 V0, the contact material is Electrolytic Copper (ECu) with tin plating. It has a fire load of 0.226MJ and weighs 14.1g. The operational temperature range is -60 to +105°C, with a processing temperature range of -35 to +60°C. It is RoHS compliant, with a packaging unit of 24 pieces, made in Germany, and has a GTIN of 4066966133295 and a customs tariff number of 85366930000.
