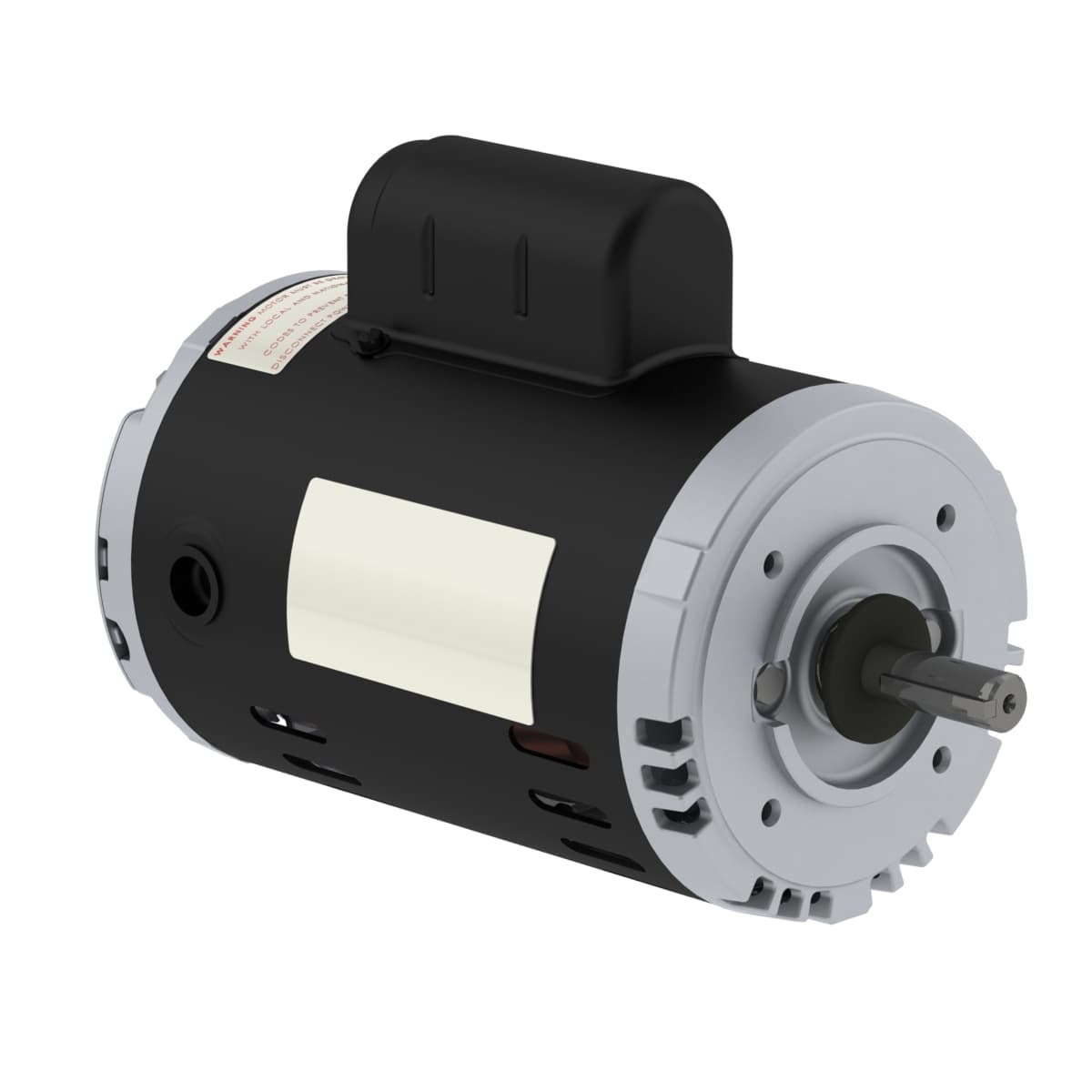

.3336OS3E56C-S WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 208-230/460 V
- Output Rating 0.33 HP
- Rated Speed 3515 rpm
- Flange Type C
- Output 0.33 HP (0.25 kW)
- Locked rotor torque 250 %
- Breakdown torque 330 %
- Voltage 208-230/460//190-220/380-415 V
- L. R. Amperes 9.49-8.58/4.29 A
- LRC 6.5x(Code M)
- Altitude 1000 m.a.s.l.
- Terminal box¹ Without Terminal Box
- Rated speed 3515 rpm
- No load current 0.776-0.900/0.450 A
- Service factor 1.35 (1.00 @ 208V)
- Number of poles 2
- Frame 56C
- Noise level² 62.0 dB(A)
- Standard NEMA MG-1
- Rated torque 0.493 ft.lb
- Moment of inertia (J) 0.0389 sq.ft.lb
- Enclosure IC01 - ODP
- Slip 2.36 %
- Locked rotor time 68s (cold) 38s (hot)
- Starting Method Direct On Line
- Duty Cycle Cont.(S1)
- Rated voltage 208-230/460 V
- Ambient temperature -20°C to +40°C
- Synchronous speed 3600 rpm
- Rated current 1.46-1.32/0.660 A
- Insulation Class F
- Approx. weight³ 16.7 lb
- Flange C
- Number of Poles 2
- Mounting F-1
- Rotation¹ Both (CW and CCW)
- Frequency 60 Hz
- Temperature rise 80 K
- Output rating 0.33 HP
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
