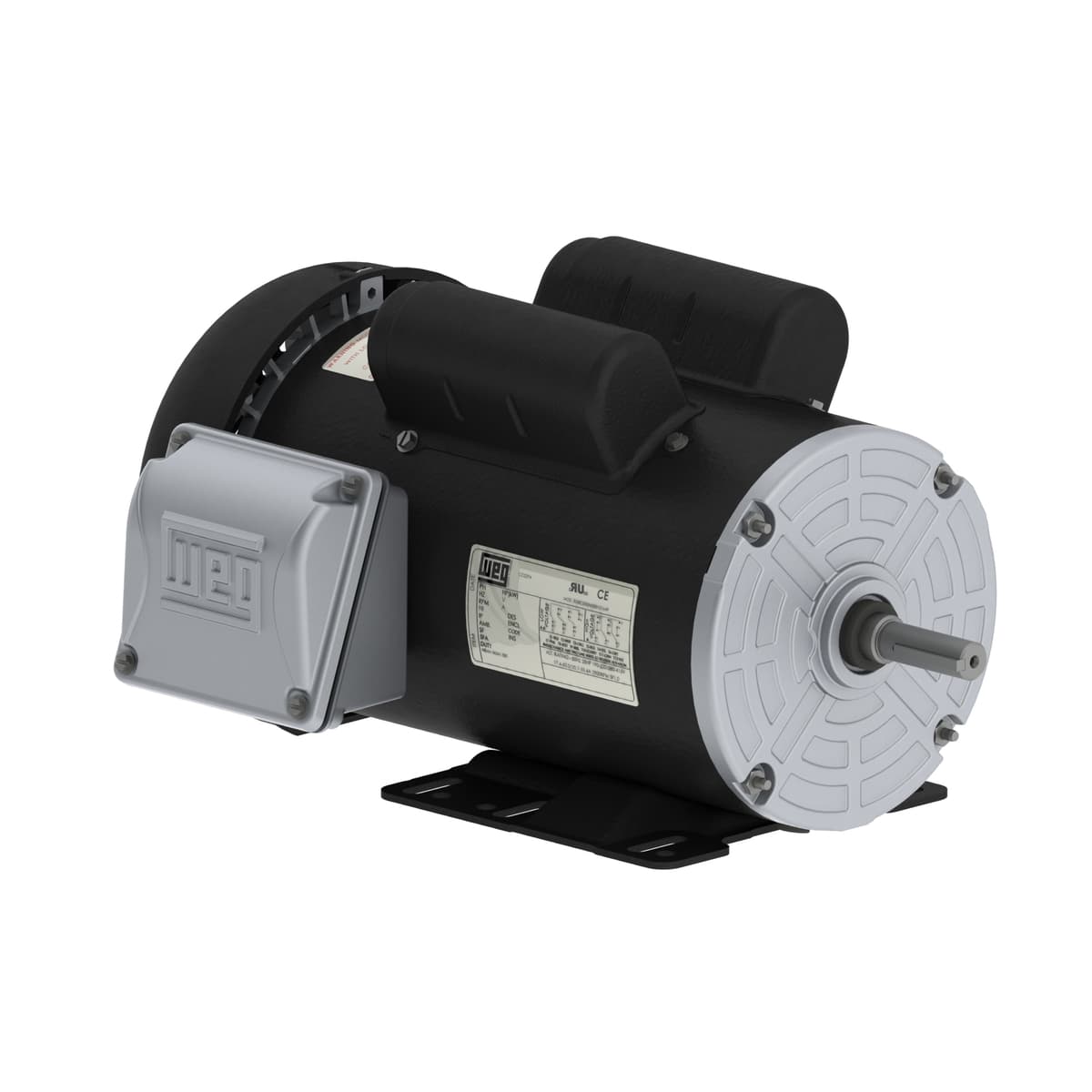

.7536ES1B56-S WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 115/208-230 V
- Output Rating 0.75 HP
- Rated Speed 3500 rpm
- Flange Type Without
- Frame 56
- Moment of inertia (J) 0.0394 sq.ft.lb
- Rotation¹ Both (CW and CCW)
- Flange Without
- Output 0.75 HP (0.55 kW)
- No load current 4.00/1.72-2.00 A
- Duty Cycle Cont.(S1)
- Output rating 0.75 HP
- Rated speed 3500 rpm
- Design N
- Enclosure IC411 - TEFC
- Rated current 8.00/4.42-4.00 A
- Breakdown torque 290 %
- Altitude 1000 m.a.s.l.
- Standard NEMA MG-1
- Frequency 60 Hz
- Service factor 1.15 (1.00 @ 208V)
- Mounting F-1
- Terminal box¹ Left position
- Slip 2.78 %
- Temperature rise 80 K
- Degree of Protection IP55
- Number of poles 2
- LRC 8.0x(Code L)
- Insulation Class F
- Approx. weight³ 25.6 lb
- L. R. Amperes 64.0/35.4-32.0 A
- Rated torque 1.13 ft.lb
- Noise level² 68.0 dB(A)
- Rated voltage 115/208-230 V
- Locked rotor time 18s (cold) 10s (hot)
- Starting Method Direct On Line
- Synchronous speed 3600 rpm
- Number of Poles 2
- Locked rotor torque 280 %
- Ambient temperature -20°C to +40°C
- Voltage 115/208-230 V
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
