00218ET3HCT145TF1-W2 WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 575 V
- Output Rating 2 HP
- Rated Speed 1750 rpm
- Flange Type Without
- Number of Poles 4
- Moment of inertia (J) 0.1561 sq.ft.lb
- Enclosure IC411 - TEFC
- Voltage 575 V
- Frequency 60 Hz
- No load current 1.30 A
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- L. R. Amperes 18.5 A
- Breakdown torque 320 %
- Starting Method Direct On Line
- Approx. weight³ 53.4 lb
- Rated voltage 575 V
- Rated torque 6.00 ft.lb
- Degree of Protection IP55
- Flange Without
- Slip 2.78 %
- Insulation Class F
- Duty Cycle Cont.(S1)
- Terminal box¹ Left position
- Output 2 HP (1.5 kW)
- Service factor 1.25
- Altitude 1000 m.a.s.l.
- Output rating 2 HP
- Frame 143/5T
- Locked rotor time 18s (cold) 10s (hot)
- Mounting F-1
- Synchronous speed 1800 rpm
- Rated current 2.23 A
- Design B
- Noise level² 51.0 dB(A)
- LRC 8.3x(Code L)
- Temperature rise 80 K
- Number of poles 4
- Rated speed 1750 rpm
- Locked rotor torque 270 %
- Rotation¹ Both (CW and CCW)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
00218ET3HCT145TF1-W2 Related Documents
Manufacturer warranty
00218ET3HCT145TF1-W2 WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 00218ET3HCT145TF1-W2 with other AC Motors products
Number of Poles
Voltage
Output Rating
Rated Speed
Flange Type
Moment of inertia (J)
Enclosure
Frequency
No load current
Ambient temperature
Selected product
00218ET3HCT145TF1-W2
WEG

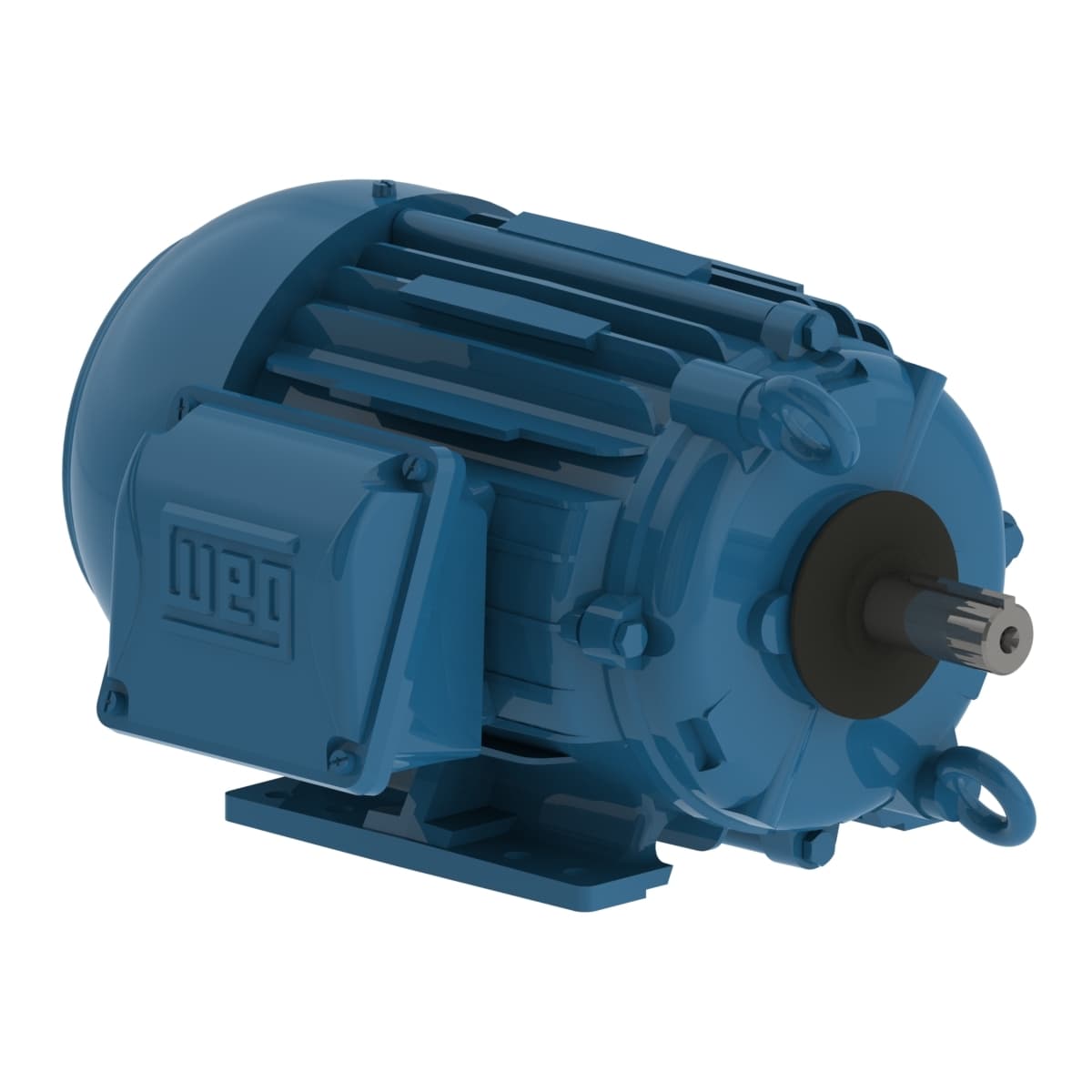

W22 Cooling Tower NEMA Premium Efficiency 2 HP 4P 143/5T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
