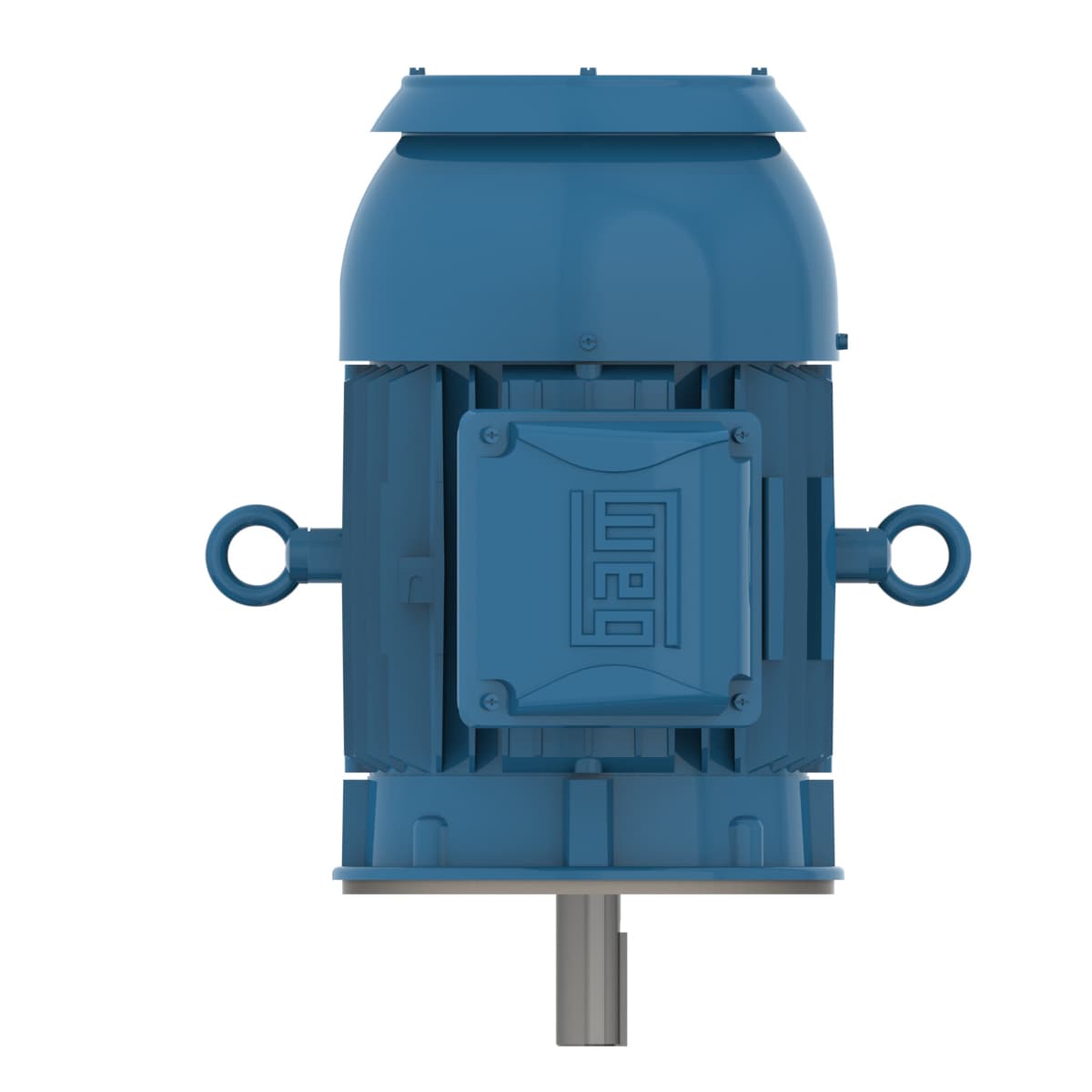

00318EP3ER182TC-W22 WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 230/460 V
- Output Rating 3 HP
- Rated Speed 1760 rpm
- Flange Type C
- Rated current 8.10/4.05 A
- No load current 4.40/2.20 A
- Starting Method Direct On Line
- Number of poles 4
- Rated torque 8.95 ft.lb
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Flange C
- L. R. Amperes 64.0/32.0 A
- Design B
- Ambient temperature -20°C to +40°C
- Voltage 230/460//380 V
- Frequency 60 Hz
- LRC 7.9x(Code K)
- Noise level² 56.0 dB(A)
- Rated speed 1760 rpm
- Service factor 1.25
- Approx. weight³ 88.5 lb
- Frame 182TC
- Moment of inertia (J) 0.2636 sq.ft.lb
- Duty Cycle Cont.(S1)
- Synchronous speed 1800 rpm
- Output 3 HP (2.2 kW)
- Locked rotor torque 220 %
- Altitude 1000 m.a.s.l.
- Output rating 3 HP
- Rated voltage 230/460 V
- Locked rotor time 32s (cold) 18s (hot)
- Mounting W-6
- Terminal box¹ Left position
- Slip 2.22 %
- Insulation Class F
- Enclosure IC411 - TEFC
- Standard NEMA MG-1
- Number of Poles 4
- Breakdown torque 280 %
- Degree of Protection IP55
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
