00318ET3J182T-S WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 380 V
- Output Rating 3 HP
- Rated Speed 1765 rpm
- Flange Type Without
- Rated voltage 380 V
- Breakdown torque 300 %
- Altitude 1000 m.a.s.l.
- Rotation¹ Both (CW and CCW)
- Number of Poles 4
- Insulation Class F
- Enclosure IC411 - TEFC
- Output rating 3 HP
- LRC 8.8x(Code K)
- Ambient temperature -20°C to +40°C
- Standard NEMA MG-1
- Frequency 60 Hz
- Service factor 1.15
- Noise level² 56.0 dB(A)
- Slip 1.94 %
- Rated torque 8.93 ft.lb
- Temperature rise 80 K
- Number of poles 4
- Output 3 HP (2.2 kW)
- Locked rotor torque 220 %
- Starting Method Direct On Line
- Approx. weight³ 78.5 lb
- Rated current 4.61 A
- Locked rotor time 32s (cold) 18s (hot)
- Flange Without
- Frame 182/4T
- Design B
- Degree of Protection IP55
- Terminal box¹ Left position
- Rated speed 1765 rpm
- No load current 2.42 A
- Duty Cycle Cont.(S1)
- Voltage 380 V
- L. R. Amperes 40.6 A
- Moment of inertia (J) 0.4017 sq.ft.lb
- Mounting F-1
- Synchronous speed 1800 rpm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
00318ET3J182T-S Related Documents
Manufacturer warranty
00318ET3J182T-S WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Worldwide Shipping and Delivery
Secure Payment Processing
Warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 00318ET3J182T-S with other AC Motors products
Number of Poles
Voltage
Output Rating
Rated Speed
Flange Type
Rated voltage
Breakdown torque
Altitude
Rotation¹
Insulation Class
Selected product
00318ET3J182T-S
WEG

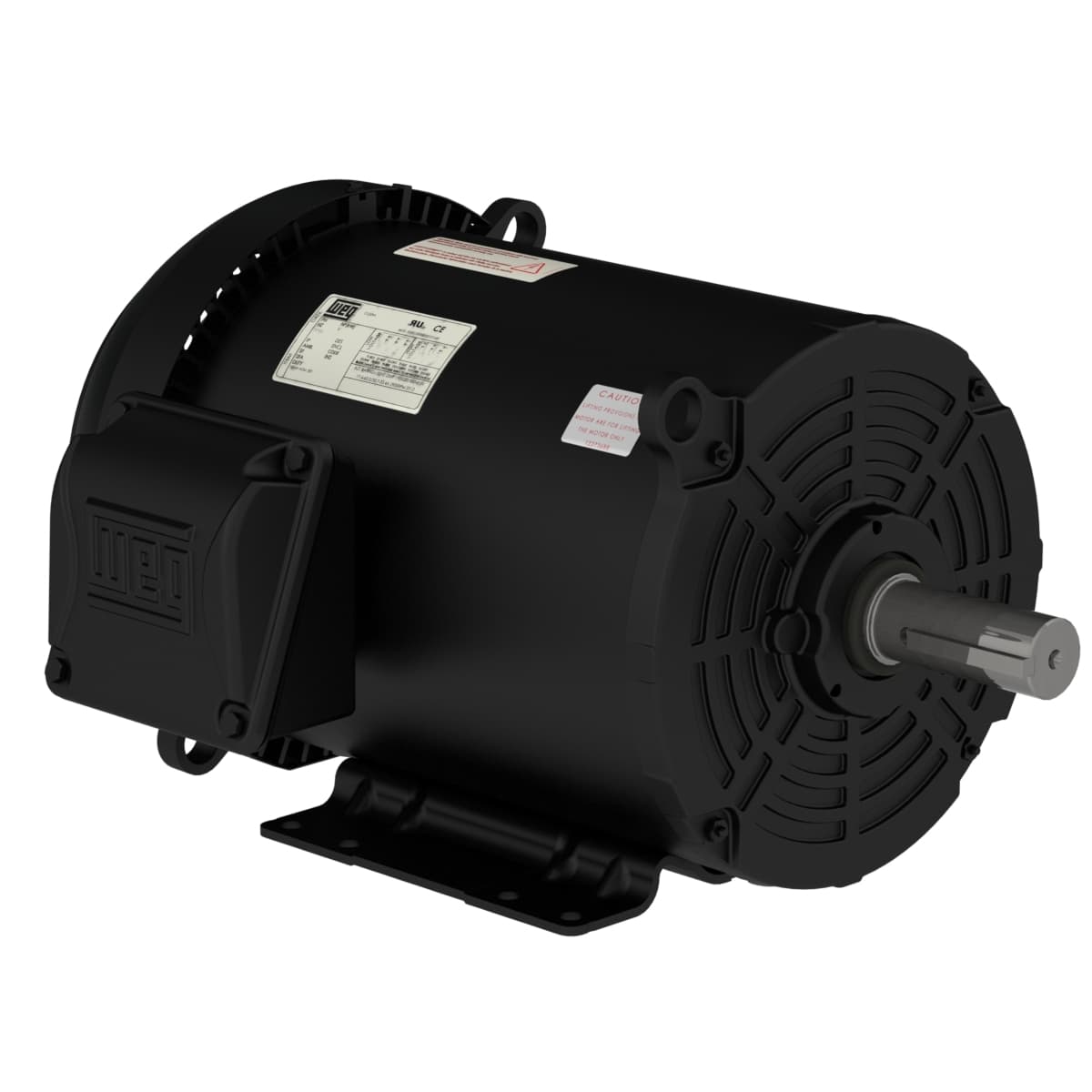

Rolled Steel NEMA Premium Efficiency 3 HP 4P 182/4T 3Ph 380 V 60 Hz IC411 - TEFC - Foot-mounted
