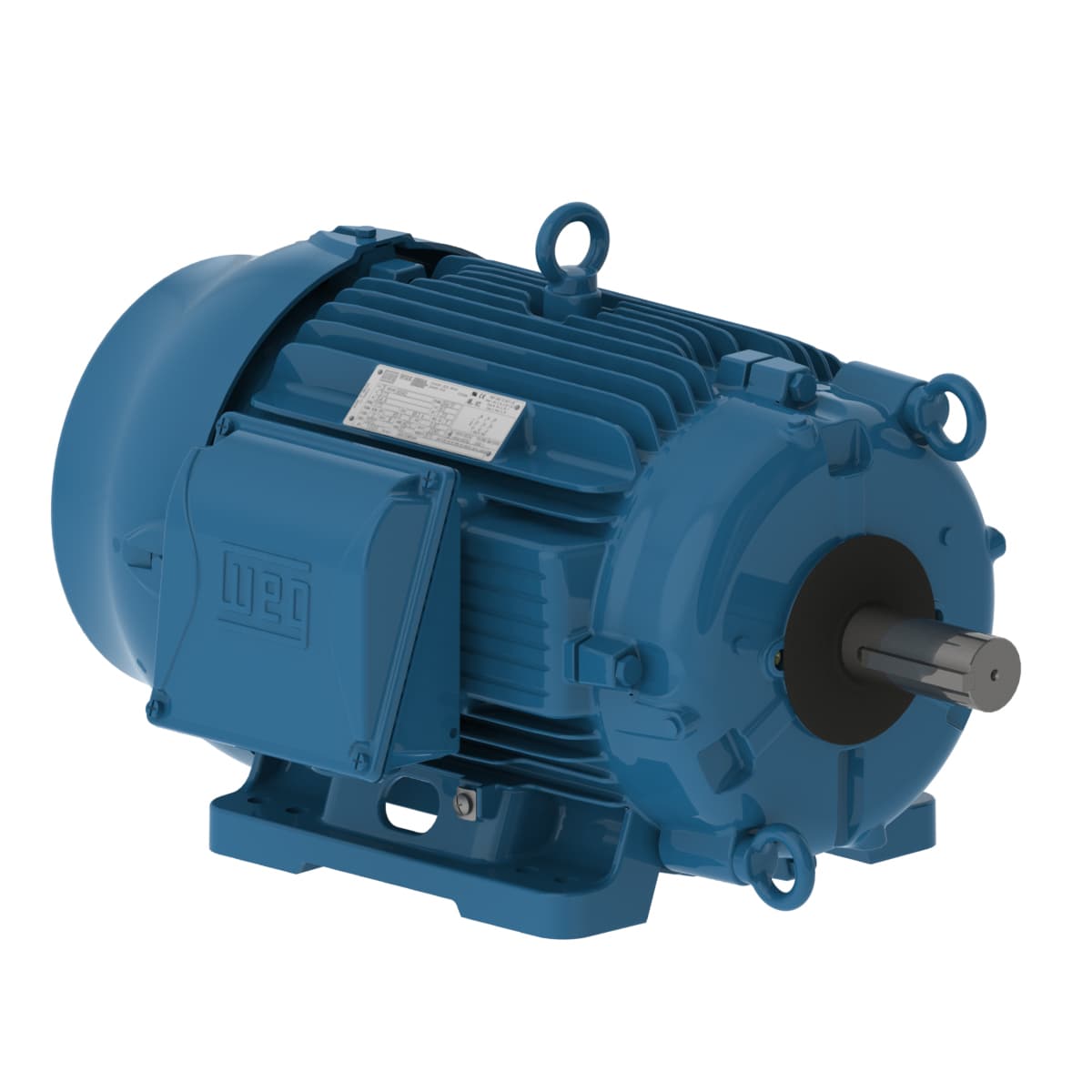

01012ET3ECT256TF1-W2 WEG AC Motors
Product Details
- Number of Poles 6 Pole
- Voltage 230/460 V
- Output Rating 10 HP
- Rated Speed 1175 rpm
- Flange Type Without
- Frequency 60 Hz
- Rated torque 44.7 ft.lb
- Approx. weight³ 308 lb
- Rated voltage 230/460 V
- No load current 12.0/6.00 A
- Altitude 1000 m.a.s.l.
- Number of poles 6
- Locked rotor time 46s (cold) 26s (hot)
- Duty Cycle Cont.(S1)
- Synchronous speed 1200 rpm
- L. R. Amperes 173/86.5 A
- Locked rotor torque 229 %
- Temperature rise 80 K
- Rated speed 1175 rpm
- Starting Method Direct On Line
- Mounting F-1
- Terminal box¹ Left position
- Rated current 26.6/13.3 A
- Design B
- Rotation¹ Both (CW and CCW)
- Flange Without
- Number of Poles 6
- Breakdown torque 280 %
- Standard NEMA MG-1
- Output 10 HP (7.5 kW)
- LRC 6.5x(Code H)
- Service factor 1.25
- Enclosure IC411 - TEFC
- Noise level² 59.0 dB(A)
- Slip 2.08 %
- Moment of inertia (J) 4.43 sq.ft.lb
- Degree of Protection IP55
- Frame 254/6T
- Insulation Class F
- Voltage 230/460//380 V
- Output rating 10 HP
- Ambient temperature -20°C to +40°C
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
