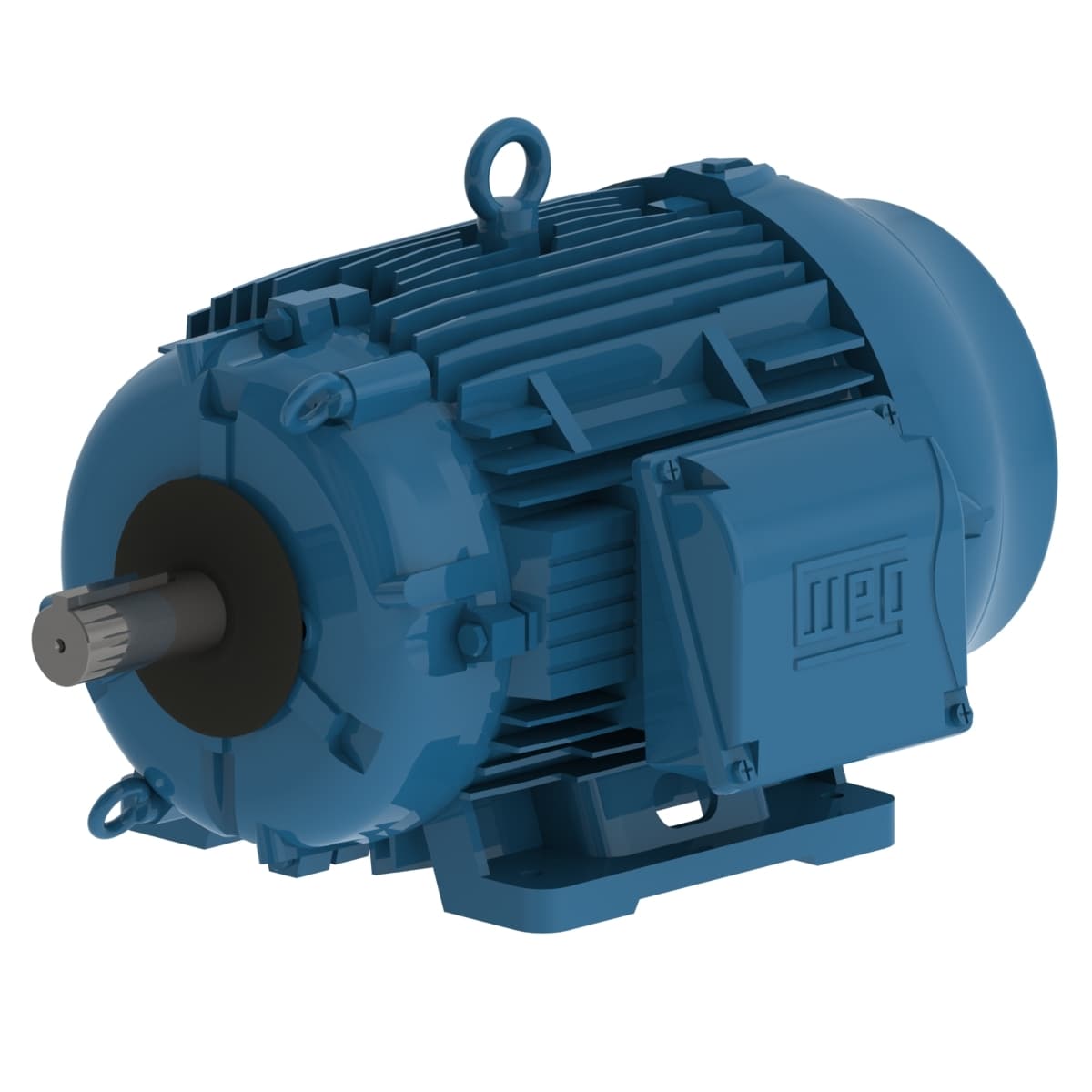

01512ET3PCT284T-W22 WEG AC Motors
Product Details
- Number of Poles 6 Pole
- Voltage 200 V
- Output Rating 15 HP
- Rated Speed 1175 rpm
- Flange Type Without
- LRC 6.4x(Code G)
- Ambient temperature -20°C to +40°C
- Rotation¹ Both (CW and CCW)
- Slip 2.08 %
- Locked rotor torque 229 %
- Enclosure IC411 - TEFC
- Voltage 200 V
- Output 15 HP (11 kW)
- Insulation Class F
- Synchronous speed 1200 rpm
- L. R. Amperes 264 A
- Service factor 1.25
- Degree of Protection IP55
- Standard NEMA MG-1
- Rated speed 1175 rpm
- No load current 16.1 A
- Temperature rise 80 K
- Number of Poles 6
- Design B
- Mounting F-2
- Terminal box¹ Right position
- Frequency 60 Hz
- Rated torque 67.0 ft.lb
- Starting Method Direct On Line
- Approx. weight³ 386 lb
- Rated voltage 200 V
- Breakdown torque 260 %
- Noise level² 59.0 dB(A)
- Output rating 15 HP
- Rated current 41.2 A
- Moment of inertia (J) 7.85 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Flange Without
- Frame 284T
- Locked rotor time 36s (cold) 20s (hot)
- Duty Cycle Cont.(S1)
- Number of poles 6
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
