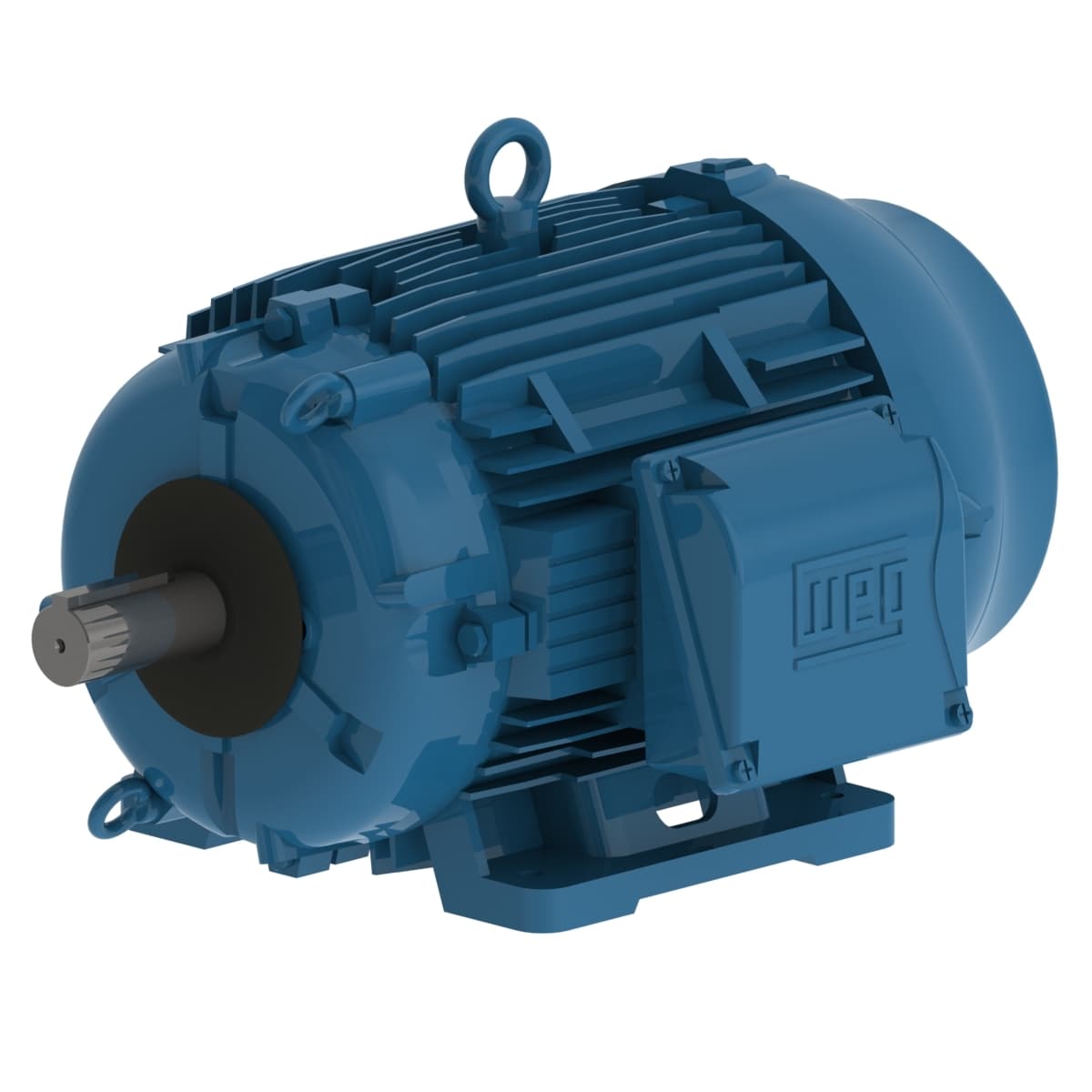

02518ET3HCT284T-W22 WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 575 V
- Output Rating 25 HP
- Rated Speed 1770 rpm
- Flange Type Without
- Rated current 23.6 A
- Locked rotor torque 240 %
- Duty Cycle Cont.(S1)
- Synchronous speed 1800 rpm
- Slip 1.67 %
- No load current 8.80 A
- Ambient temperature -20°C to +40°C
- Rated voltage 575 V
- Locked rotor time 43s (cold) 24s (hot)
- Altitude 1000 m.a.s.l.
- Terminal box¹ Right position
- L. R. Amperes 146 A
- Breakdown torque 270 %
- Temperature rise 80 K
- Output rating 25 HP
- Frequency 60 Hz
- Rated torque 74.2 ft.lb
- Degree of Protection IP55
- Number of poles 4
- Output 25 HP (18.5 kW)
- Service factor 1.25
- Rotation¹ Both (CW and CCW)
- Rated speed 1770 rpm
- Design B
- Enclosure IC411 - TEFC
- Voltage 575 V
- LRC 6.2x(Code G)
- Insulation Class F
- Standard NEMA MG-1
- Frame 284T
- Moment of inertia (J) 5.11 sq.ft.lb
- Mounting F-2
- Flange Without
- Number of Poles 4
- Starting Method Direct On Line
- Approx. weight³ 388 lb
- Noise level² 63.0 dB(A)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
