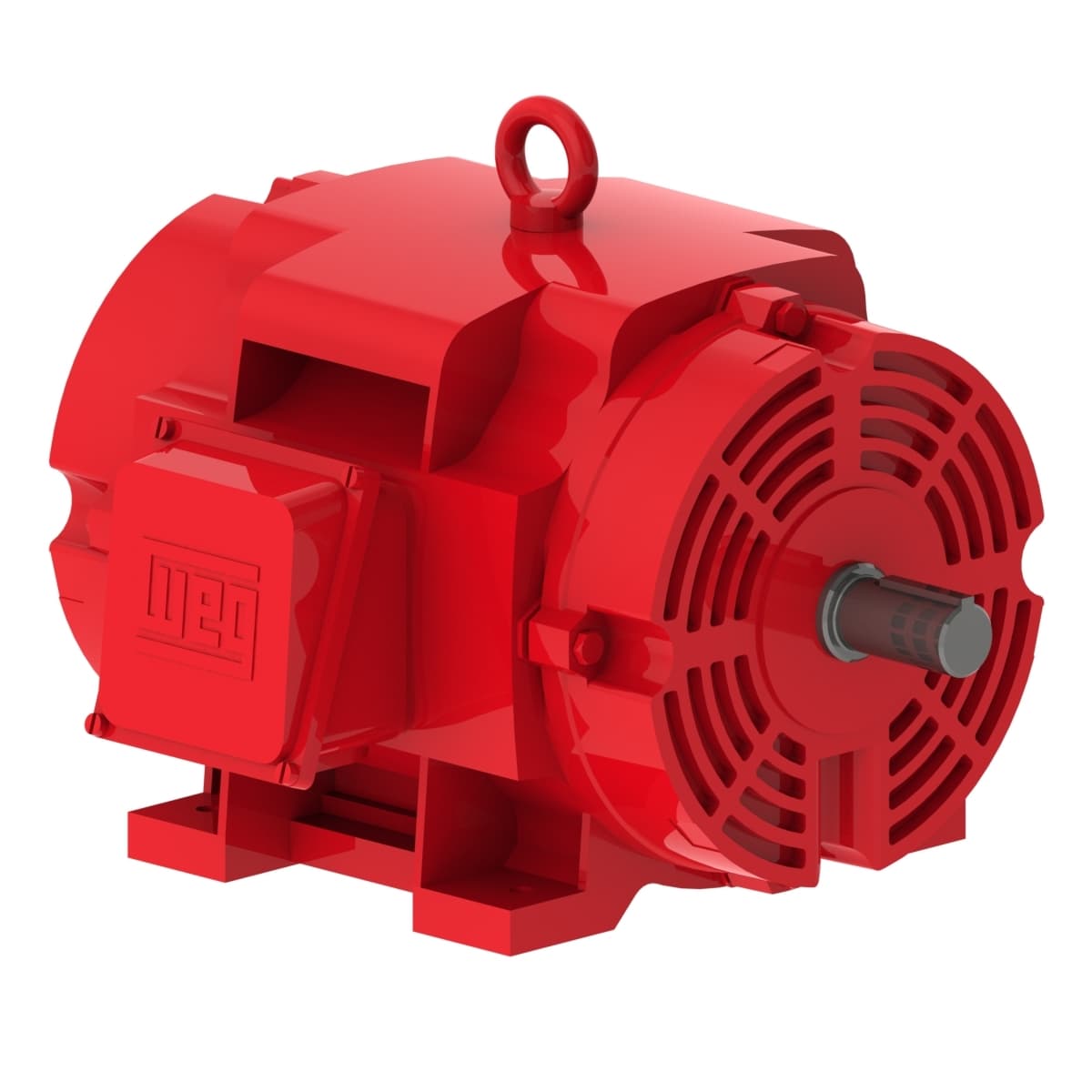

03036OT3H284JM WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 575 V
- Output Rating 30 HP
- Rated Speed 3550 rpm
- Flange Type C
- Locked rotor torque 180 %
- Duty Cycle Cont.(S1)
- Voltage 575 V
- Rated voltage 575 V
- Breakdown torque 260 %
- Enclosure IC01 - ODP
- Terminal box¹ Left position
- Slip 1.39 %
- Locked rotor time 18s (cold) 10s (hot)
- Degree of Protection IP23
- Output rating 30 HP
- Frame 284JM
- LRC 6.3x(Code G)
- Service factor 1.15
- Noise level² 72.0 dB(A)
- Flange C
- L. R. Amperes 176 A
- Insulation Class F
- Mounting F-1
- Frequency 60 Hz
- Design B
- Ambient temperature -20°C to +40°C
- Rated speed 3550 rpm
- No load current 10.3 A
- Rotation¹ Both (CW and CCW)
- Output 30 HP (22 kW)
- Rated torque 44.4 ft.lb
- Starting Method Direct On Line
- Standard NEMA MG-1
- Number of Poles 2
- Temperature rise 80 K
- Approx. weight³ 346 lb
- Synchronous speed 3600 rpm
- Rated current 28.0 A
- Moment of inertia (J) 1.89 sq.ft.lb
- Altitude 1000 m.a.s.l.
- Number of poles 2
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
