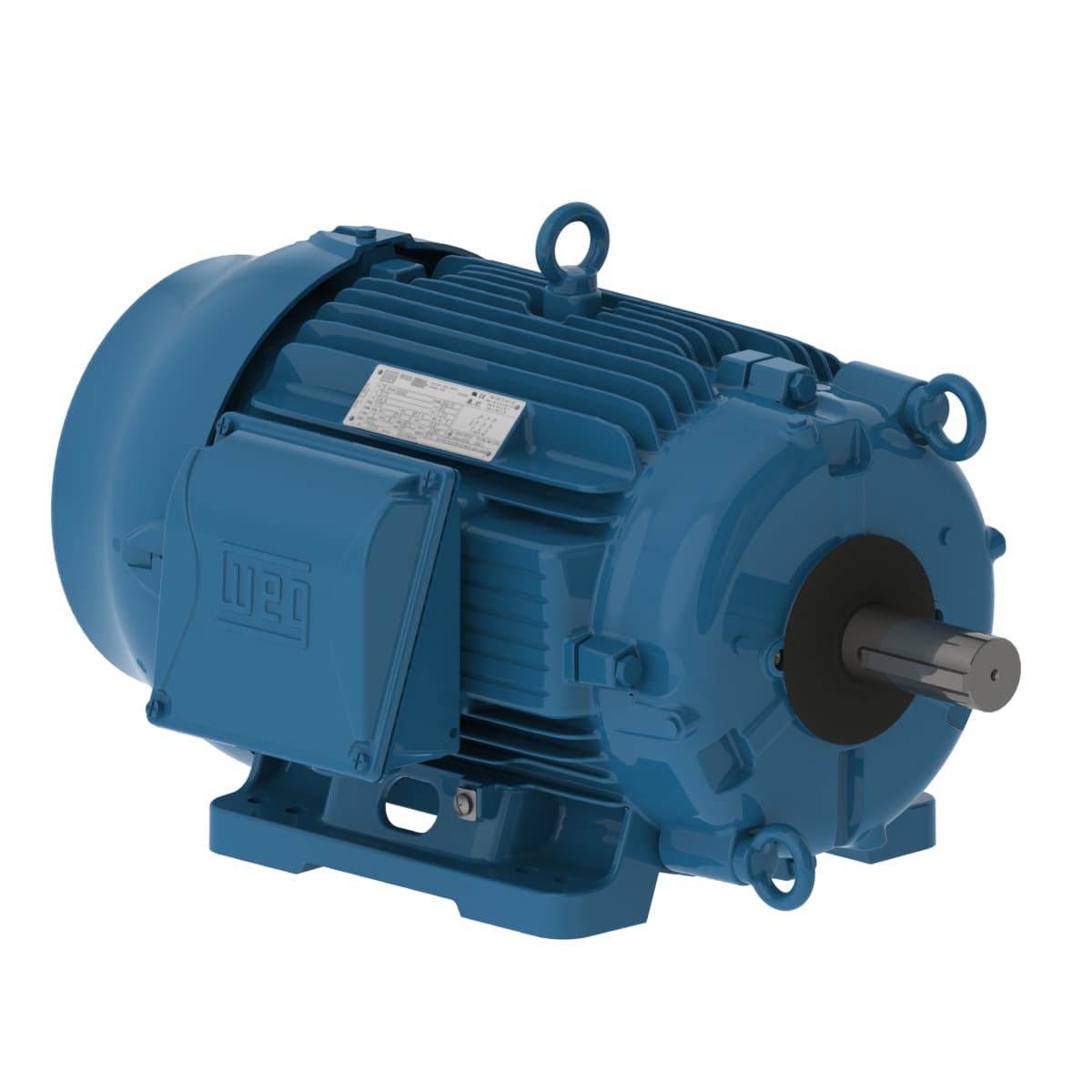

04018EG3E324T-W22 WEG AC Motors

04018EG3E324T-W22 on Powermatic Associates

WEG

Part#:04018EG3E324T-W22

Alt. Part#:7909158388783

Manufacturer:WEG

Category:AC Motors

Product Lifecycle:Active

Product description

W22 Super Premium Efficiency 40 HP 4P 324/6T 3Ph 208-230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted

Product Details

Number of Poles
4 Pole
Voltage
230/460 V
Output Rating
40 HP
Rated Speed
1780 rpm
Flange Type
Without
Rated current
97.8/48.9 A
Design
A
Altitude
1000 m.a.s.l.
Synchronous speed
1800 rpm
Frame
324/6T
Insulation Class
F
Degree of Protection
IP55
Number of Poles
4
Locked rotor time
39s (cold) 22s (hot)
Noise level²
66.0 dB(A)
Output
40 HP (30 kW)
Breakdown torque
350 %
Flange
Without
No load current
44.0/22.0 A
Rotation¹
Both (CW and CCW)

Mounting

F-1

Rated torque

118 ft.lb

Frequency

60 Hz

Enclosure

IC411 - TEFC

Voltage

208-230/460//380 V

Rated voltage

230/460 V

Service factor

1.25

Approx. weight³

593 lb

Output rating

40 HP

L. R. Amperes

822/411 A

LRC

8.4x(Code K)

Duty Cycle

Cont.(S1)

Standard

NEMA MG-1

Slip

1.11 %

Moment of inertia (J)

8.83 sq.ft.lb

Starting Method

Direct On Line

Number of poles

4

Rated speed

1780 rpm

Locked rotor torque

320 %

Temperature rise

80 K

Ambient temperature

-20°C to +40°C

Terminal box¹

Left position

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
