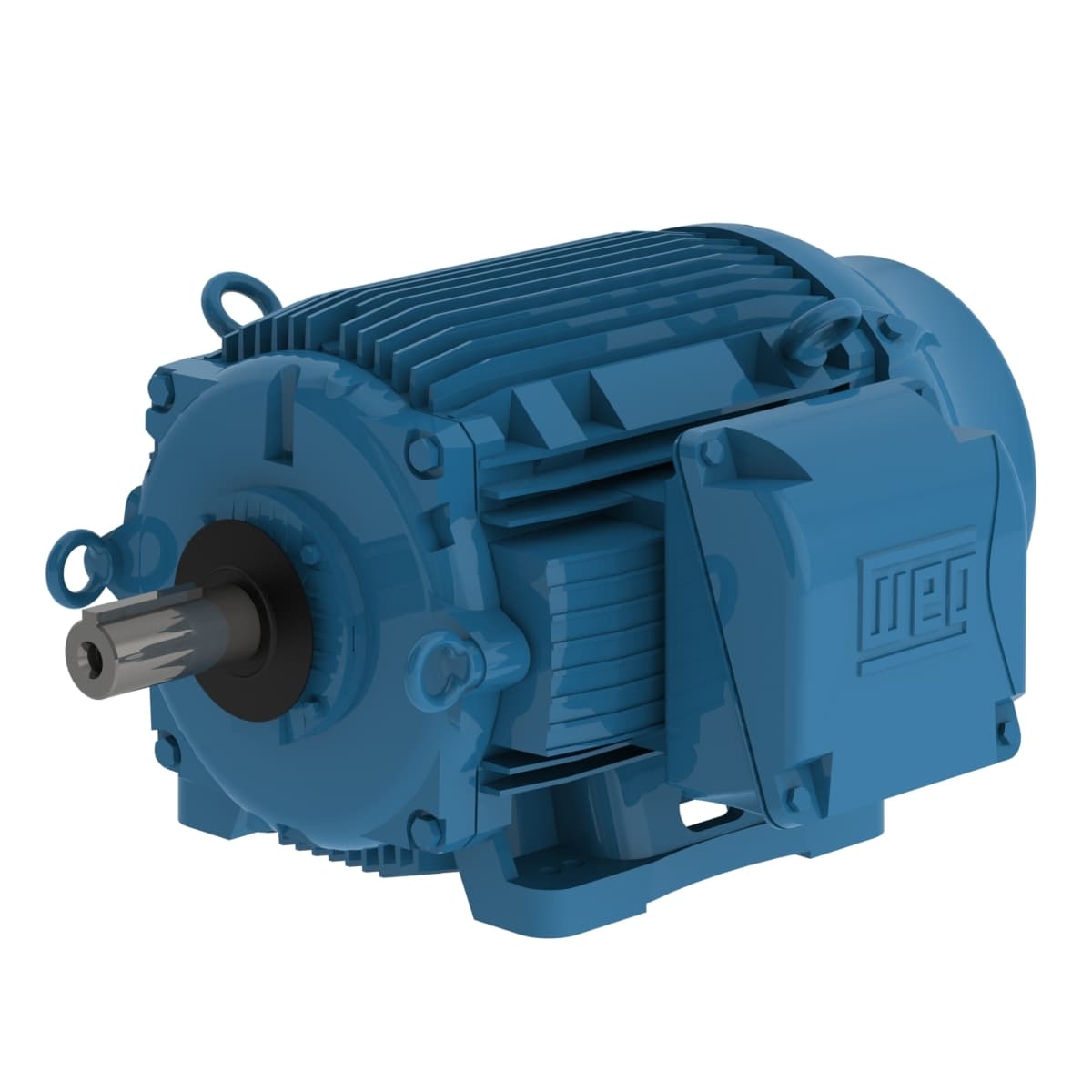

05026EP3QCT365VF1-W2 WEG AC Motors
Product Details
- Number of Poles 45632 Pole
- Voltage 460 V
- Output Rating 12.5/50 HP
- Rated Speed 590 rpm
- Flange Type Without
- Rated voltage 460 V
- Duty Cycle Cont.(S1)
- Output rating 12.5/50 HP
- Rated speed 590 rpm
- No load current 13.0 A
- Altitude 1000 m.a.s.l.
- Mounting F-1
- Output 12.5 HP (9.2 kW)
- Service factor 1.15
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- L. R. Amperes 73.5 A
- Frame 364/5T
- Locked rotor torque 130 %
- Breakdown torque 180 %
- Starting Method Direct On Line
- Approx. weight³ 966 lb
- Voltage 460 V
- Standard NEMA MG-1
- Rated current 21.0 A
- Rated torque 111 ft.lb
- Temperature rise 80 K
- Synchronous speed 600/1200 rpm
- Number of Poles 12/6
- Insulation Class F
- Degree of Protection IP55
- Enclosure IC411 - TEFC
- Frequency 60 Hz
- Moment of inertia (J) 32.4 sq.ft.lb
- LRC 3.5x(Code E)
- Ambient temperature -20°C to +40°C
- Number of poles 12/6
- Slip 1.67 %
- Locked rotor time 162s (cold) 90s (hot)
- Noise level² 60.0 dB(A)
- Flange Without
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
