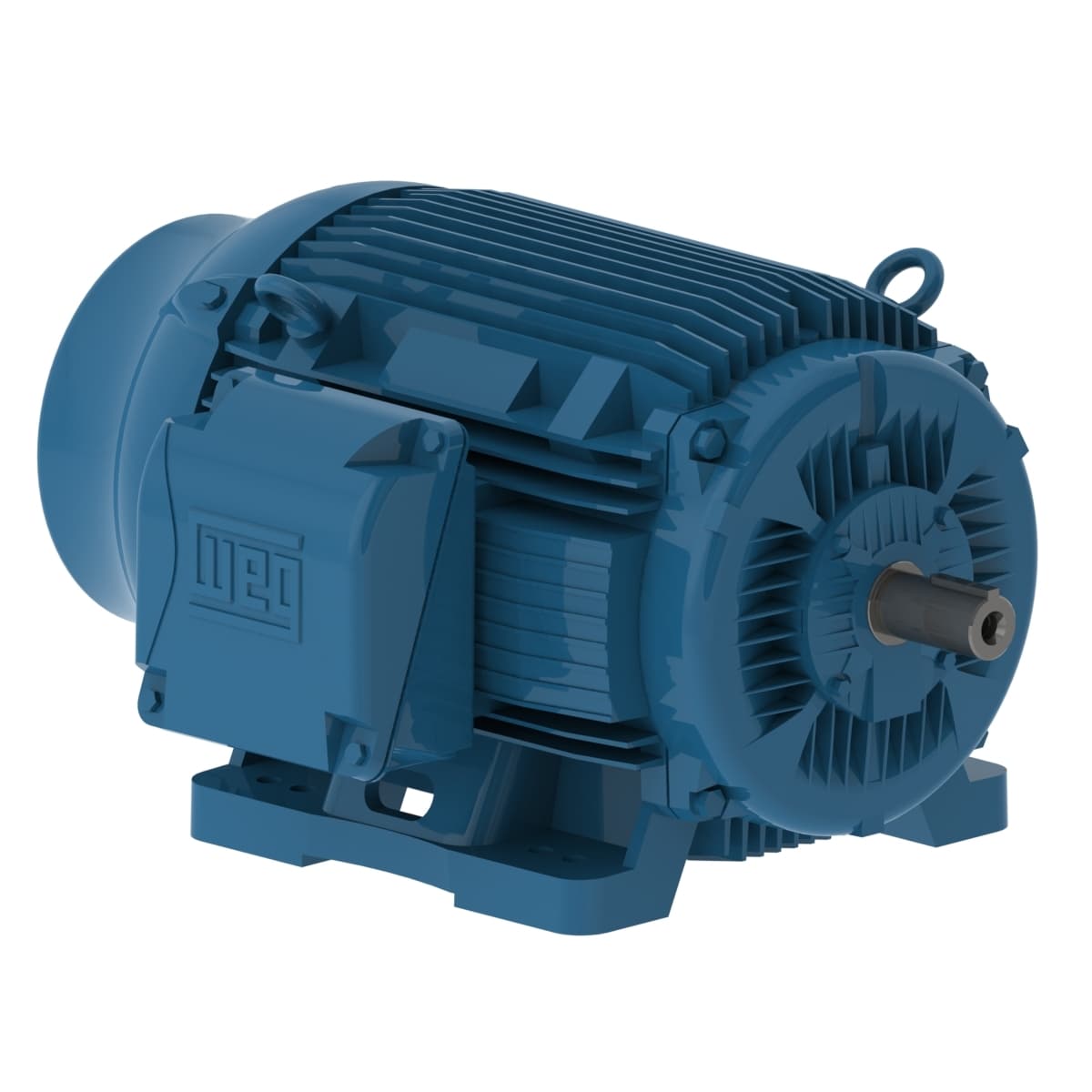

07512ET3H405T-W22G WEG AC Motors
Product Details
- Number of Poles 6 Pole
- Voltage 575 V
- Output Rating 75 HP
- Rated Speed 1184 rpm
- Flange Type Without
- Slip 1.33 %
- Moment of inertia (J) 40.2 sq.ft.lb
- Noise level² 68.0 dB(A)
- L. R. Amperes 435 A
- Frame 404/5T
- Temperature rise 80 K
- Standard NEMA MG-1
- Rated voltage 575 V
- Service factor 1.25
- Mounting F-1
- Output rating 75 HP
- Rated current 67.9 A
- Breakdown torque 229 %
- Rotation¹ Both (CW and CCW)
- LRC 6.4x(Code G)
- Design B
- Enclosure IC411 - TEFC
- Output 75 HP (55 kW)
- Locked rotor torque 229 %
- Starting Method Direct On Line
- Voltage 575 V
- No load current 24.0 A
- Locked rotor time 30s (cold) 17s (hot)
- Frequency 60 Hz
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Flange Without
- Duty Cycle Cont.(S1)
- Synchronous speed 1200 rpm
- Ambient temperature -20°C to +40°C
- Rated torque 333 ft.lb
- Degree of Protection IP55
- Number of Poles 6
- Rated speed 1184 rpm
- Number of poles 6
- Approx. weight³ 1089 lb
- Terminal box¹ Left position
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
