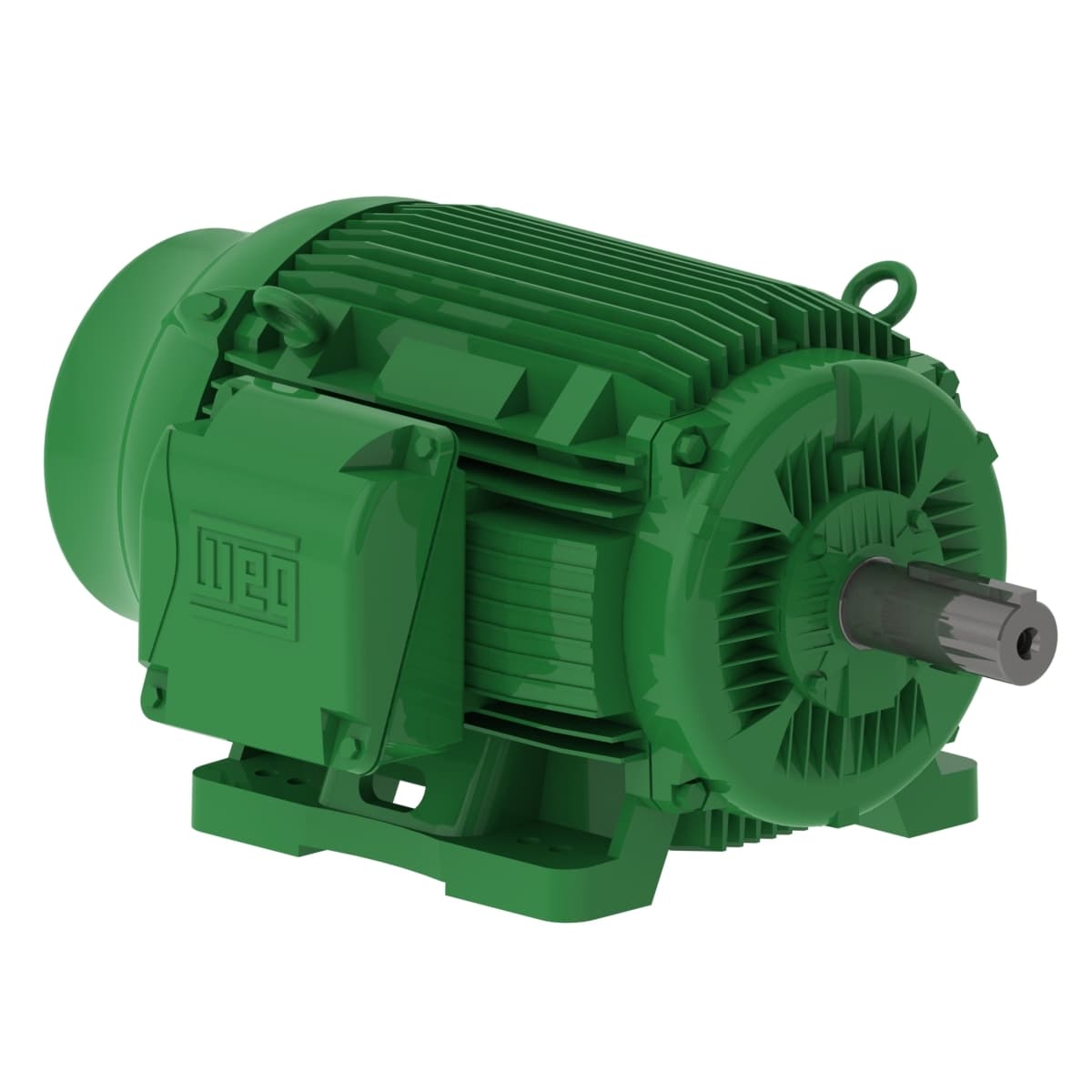

10018EG3E405T-W22 WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 230/460 V
- Output Rating 100 HP
- Rated Speed 1785 rpm
- Flange Type Without
- Frequency 60 Hz
- Insulation Class F
- Altitude 1000 m.a.s.l.
- Synchronous speed 1800 rpm
- Slip 0.83 %
- Service factor 1.25
- Number of poles 4
- Rated current 232/116 A
- LRC 9.9x(Code L)
- Rated voltage 230/460 V
- Locked rotor time 30s (cold) 17s (hot)
- Frame 404/5T
- No load current 94.0/47.0 A
- Starting Method Direct On Line
- L. R. Amperes 2297/1148 A
- Locked rotor torque 330 %
- Ambient temperature -20°C to +40°C
- Rated speed 1785 rpm
- Moment of inertia (J) 28.7 sq.ft.lb
- Mounting F-1
- Output 100 HP (75 kW)
- Design A
- Rotation¹ Both (CW and CCW)
- Terminal box¹ Left position
- Rated torque 294 ft.lb
- Degree of Protection IP55
- Voltage 208-230/460 V
- Number of Poles 4
- Breakdown torque 350 %
- Duty Cycle Cont.(S1)
- Approx. weight³ 1234 lb
- Noise level² 68.0 dB(A)
- Temperature rise 80 K
- Output rating 100 HP
- Standard NEMA MG-1
- Enclosure IC411 - TEFC
- Flange Without
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
