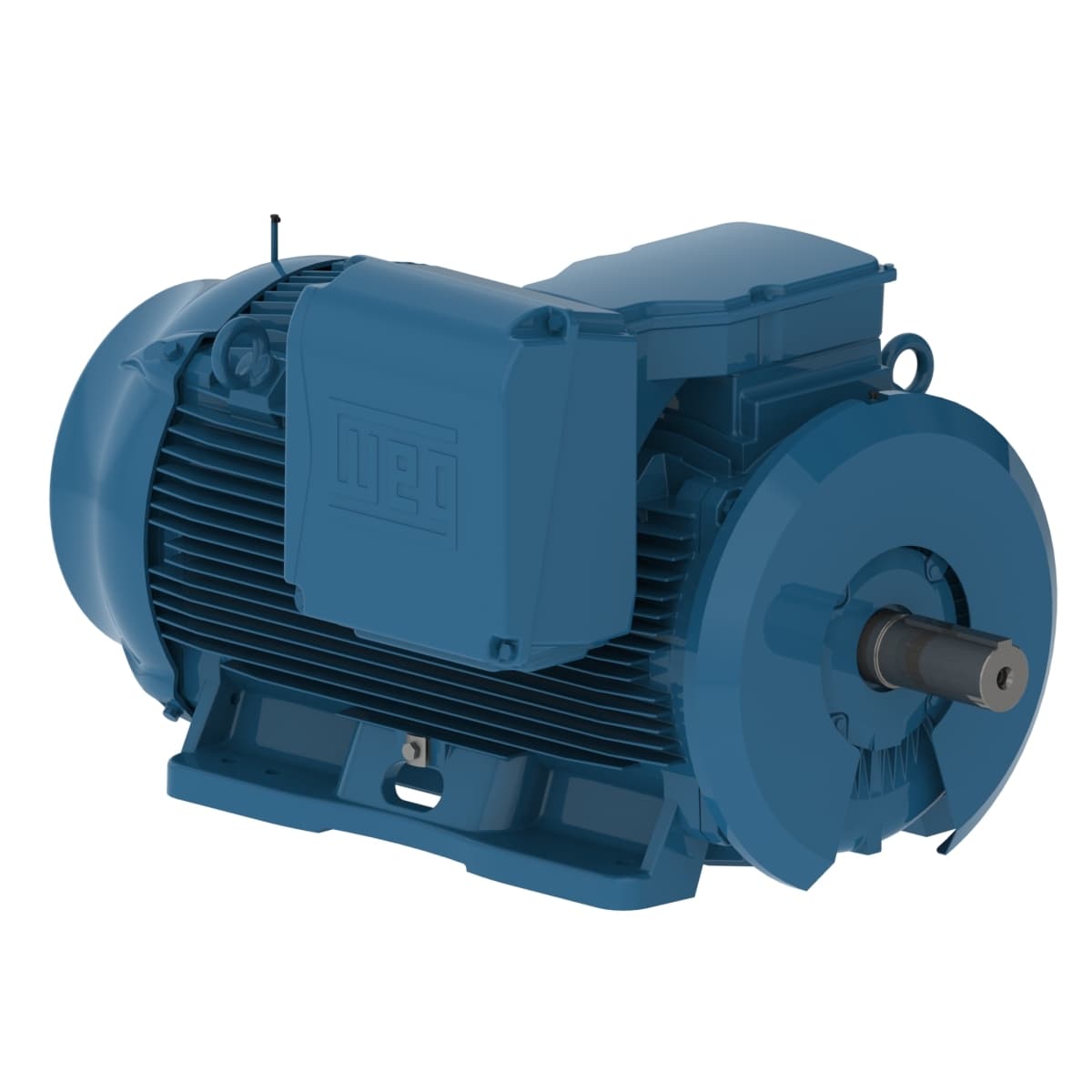

40012ET3GRB449T-W22 WEG AC Motors
Product Details
- Number of Poles 6 Pole
- Voltage 460 V
- Output Rating 400 HP
- Rated Speed 1190 rpm
- Flange Type Without
- Rated current 477 A
- Frequency 60 Hz
- Slip 0.83 %
- Frame L447/9T
- Output 400 HP (300 kW)
- L. R. Amperes 3291 A
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
- Rated voltage 460 V
- Insulation Class F
- Mounting F-1
- Terminal box¹ Left position
- Number of Poles 6
- Temperature rise 105 K
- Approx. weight³ 3620 lb
- Rated speed 1190 rpm
- Starting Method Direct On Line
- Number of poles 6
- No load current 200 A
- Ambient temperature -20°C to +40°C
- Voltage 460 V
- Locked rotor torque 240 %
- Breakdown torque 250 %
- Rotation¹ Both (CW and CCW)
- Rated torque 1770 ft.lb
- Degree of Protection IP55
- Synchronous speed 1200 rpm
- Locked rotor time 23s (cold) 13s (hot)
- Service factor 1.00
- Moment of inertia (J) 278 sq.ft.lb
- Noise level² 71.0 dB(A)
- Enclosure IC411 - TEFC
- Flange Without
- LRC 6.9x(Code H)
- Altitude 1000 m.a.s.l.
- Output rating 400 HP
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
40012ET3GRB449T-W22 Related Documents
Manufacturer warranty
40012ET3GRB449T-W22 WEG
