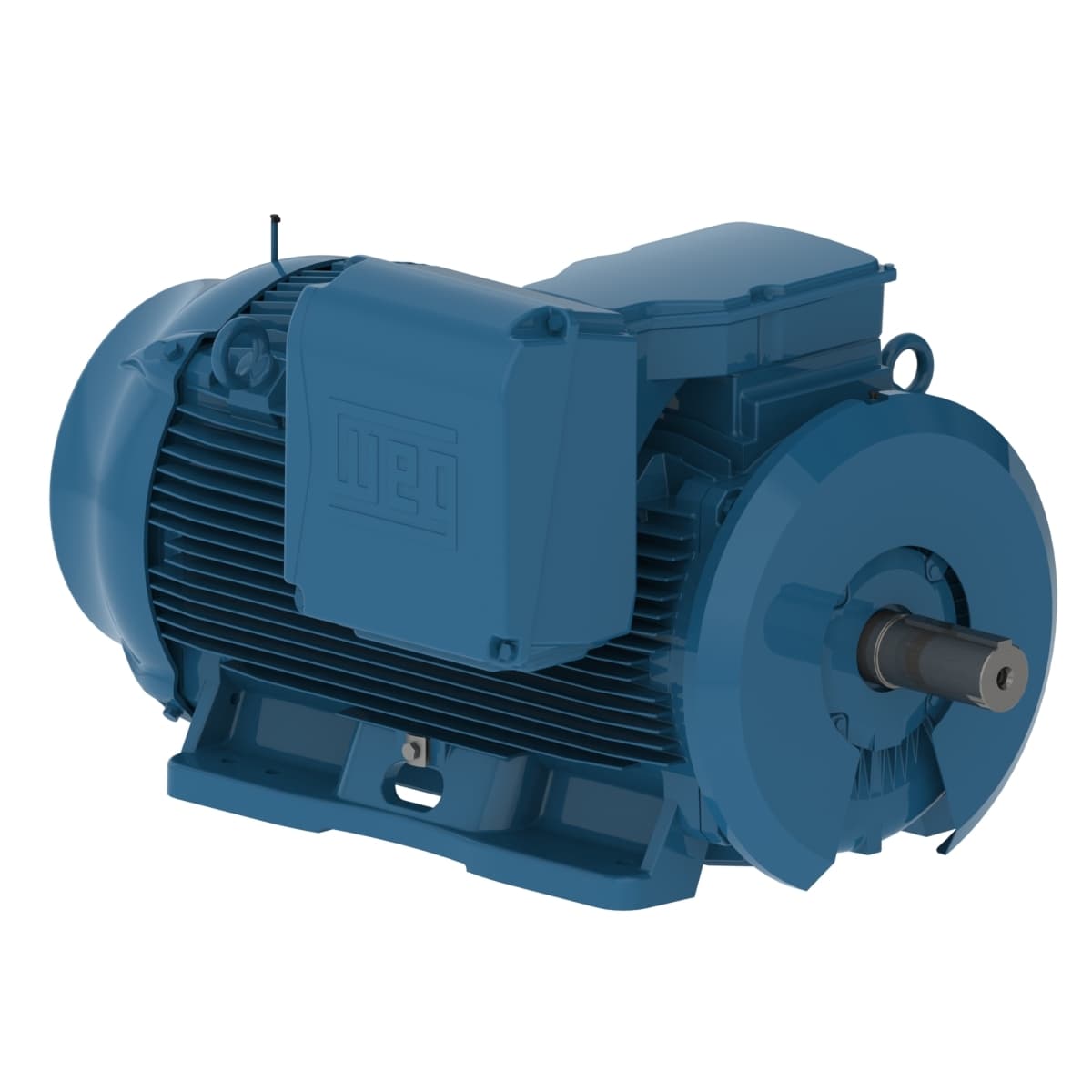

50018ET3G449T-W22 WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 460 V
- Output Rating 500 HP
- Rated Speed 1789 rpm
- Flange Type Without
- Rated current 568 A
- Breakdown torque 280 %
- Enclosure IC411 - TEFC
- Voltage 460 V
- Slip 0.61 %
- Design B
- Mounting F-1
- Terminal box¹ Left position
- Number of Poles 4
- Insulation Class F
- Noise level² 79.0 dB(A)
- Output rating 500 HP
- Rated speed 1789 rpm
- Approx. weight³ 3455 lb
- L. R. Amperes 4998 A
- Locked rotor time 39s (cold) 22s (hot)
- Temperature rise 105 K
- Synchronous speed 1800 rpm
- Frequency 60 Hz
- Degree of Protection IP55
- Flange Without
- Locked rotor torque 300 %
- Altitude 1000 m.a.s.l.
- Rated torque 1470 ft.lb
- Service factor 1.00
- Rotation¹ Both (CW and CCW)
- Output 500 HP (370 kW)
- Ambient temperature -20°C to +40°C
- Frame L447/9T
- No load current 225 A
- Starting Method Direct On Line
- Rated voltage 460 V
- Moment of inertia (J) 160 sq.ft.lb
- Number of poles 4
- LRC 8.8x(Code J)
- Duty Cycle Cont.(S1)
- Standard NEMA MG-1
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
