Part#:CL50GRYAOS3PCQ

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

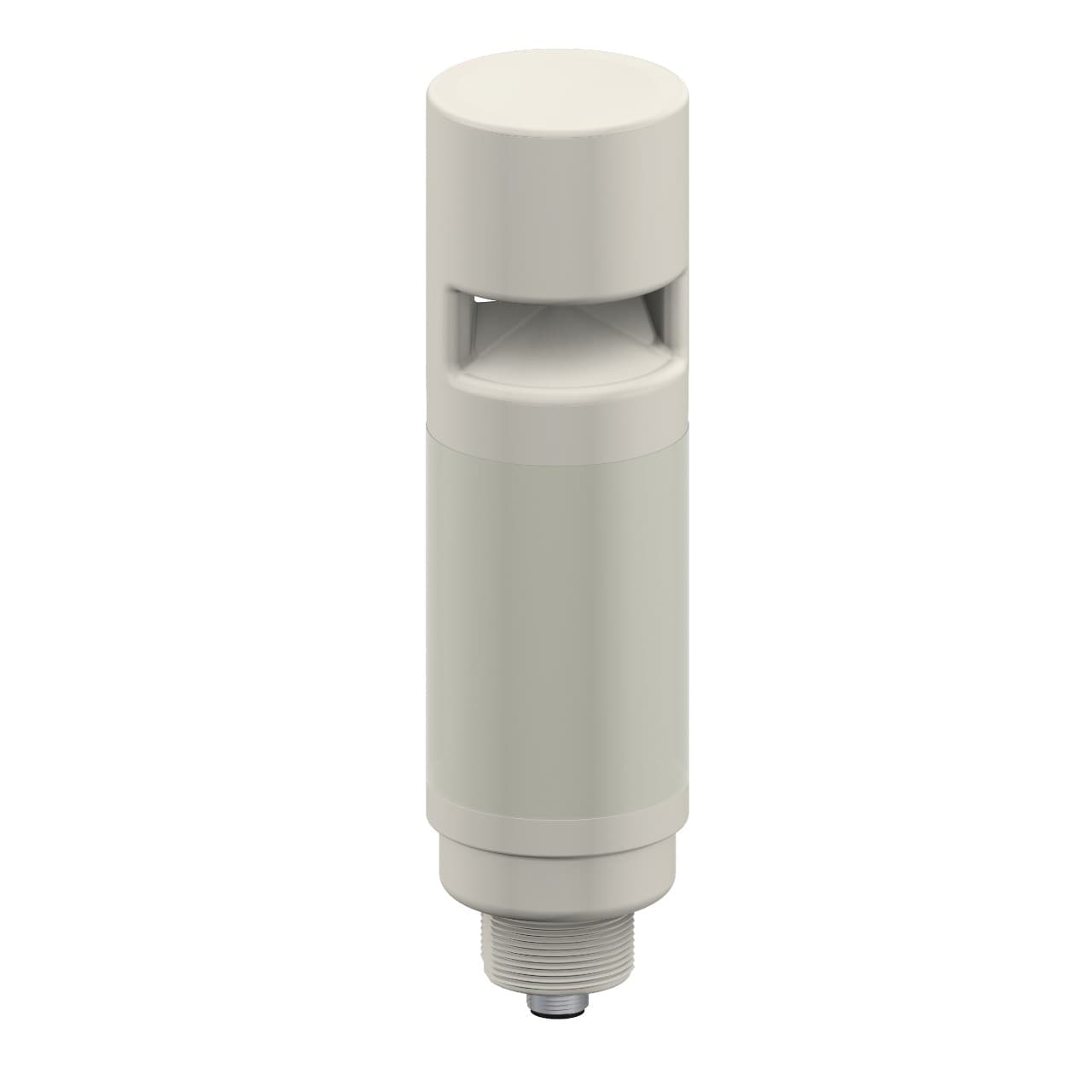

Banner Engineering CL50GRYAOS3PCQ is a beacon designed for surface or base pole mounting with an M30 or 1/2" NPSM thread. It features a polycarbonate diffused window and an ABS/polycarbonate housing and base, suitable for ambient air temperatures ranging from -20°C to +50°C. This beacon has a current consumption of 100mA and offers a degree of protection rated at IP67, NEMA 13, UL type 13. Its cylindrical shape incorporates 3 x digital inputs (18-30Vdc; PNP) for color control and 1 x digital input (18-30Vdc; PNP) for alarm input. The beacon provides sealed omni-directional audible column light functionality, with a 1.6Hz pulsed sound and a 1-tier 3-color G/R/Y color pattern LED illumination. It comes pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity, operates on a supply voltage of 18Vdc-30Vdc (24Vdc nom.), and has a diameter of 50mm / 2" with a gray housing.

Product Details

  • Power
    DC
  • Animation Option 1
    Solid On
  • Lumens Color 2
    38.0
  • Audible Alarm Type
    Pulsed
  • Primary Housing Material
    ABS/Polycarbonate
  • Lumens Color 1
    72.0
  • Color 2 - Wavelength/Color Temp/Coordinates
    625 nm
  • Modbus RTU
    No
  • Mounting Thread
    M30 x 1.5
  • Quick Disconnect Type
    M12 (Euro)
  • Supply Voltage
    18-30 V dc
  • Primary Housing Color
    Gray
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Connection
    Integral QD
  • Animation Option 3
    Solid On
  • Environmental Rating
    IP67
  • Housing Style
    Base Mount - Tower
  • Color Technology
    Standard LED
  • Color 3 - Wavelength/Color Temp/Coordinates
    590 nm
  • Max Current - Audible Alarm (mA)
    45
  • Multi-Color Device
    Single Color On
  • Indication
    Yes
  • Animation Option 2
    Solid On
  • Number of Input Pins/Conductors
    5
  • NEMA Type and UL Type Rating
    NEMA and UL 13
  • Feature: Chemical Resistant
    No
  • Number of Colors / Segments
    3
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Max Current Color (mA)
    100
  • Audible Operating Frequency (kHz)
    2.1
  • Feature: Hazardous Area
    No
  • IO Link
    No
  • Power Source
    DC
  • Color Option 1
    Green
  • Color Option 3
    Yellow
  • Max Input Response Time (ms)
    10
  • Wireless
    No
  • Cable Length (m)
    0.15
  • Product Size (mm)
    50
  • Color Option 2
    Red
  • Lumens Color 3
    30.0
  • Primary Window Material
    Polycarbonate Diffused
  • Max Audible Intensity (db at 1m)
    99
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 182.2
  • Max Op. Temperature (°C)
    50
  • Max Op. Relative Humidity Non-Condensing (%)
    95% @ 50°C
  • Feature: Quick Disconnect
    Yes
  • Pro-Editor Compatible (Discrete)
    No
  • Min Op. Temperature (°C)
    -20
  • Feature: Audible
    Yes
  • Input Type
    PNP

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
