Part#:CL50XRXAOS4IPQ

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

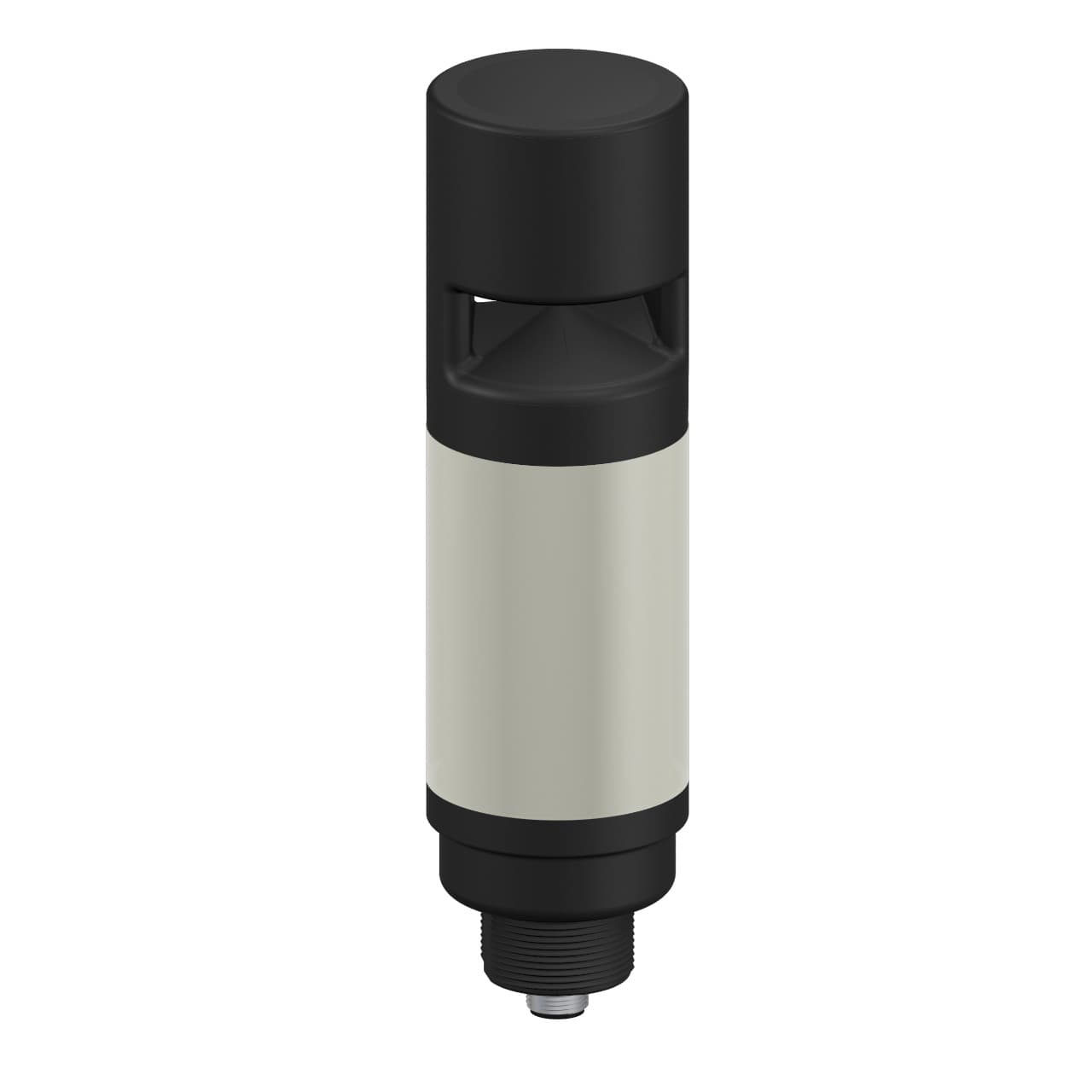

Banner Engineering CL50XRXAOS4IPQ is a beacon designed for surface or base pole mounting with an M30 or 1/2" NPSM thread. It features a polycarbonate diffused window and an ABS/polycarbonate housing and base, suitable for ambient air temperatures ranging from -20°C to +50°C. This beacon has a current consumption of 100mA and offers a degree of protection rated at IP67, NEMA 13, UL type 13. Its cylindrical shape incorporates 1 x digital input for color control and 1 x digital input for alarm input, both supporting 18-30Vdc PNP. The CL50XRXAOS4IPQ provides a sealed omni-directional audible column light with a staccato sound, whose intensity can be adjusted, and features 1-tier 1-color Red LED illumination. It comes pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity and operates on a supply voltage of 18Vdc-30Vdc (24Vdc nom.). The beacon has a diameter of 50mm / 2" and comes in a black housing.

Product Details

  • Power
    DC
  • Color Option 1
    Red
  • Max Audible Intensity (db at 1m)
    99
  • Environmental Rating
    IP67
  • Feature: Quick Disconnect
    Yes
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Quick Disconnect Type
    M12 (Euro)
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 182.2
  • Product Size (mm)
    50
  • Audible Alarm Type
    Adjustable Staccato
  • Primary Housing Color
    Black
  • Wireless
    No
  • Power Source
    DC
  • Animation Option 1
    Solid On
  • Max Current - Audible Alarm (mA)
    45
  • Max Op. Temperature (°C)
    50
  • Primary Housing Material
    ABS/Polycarbonate
  • Supply Voltage
    18-30 V dc
  • Feature: Audible
    Yes
  • Modbus RTU
    No
  • Indication
    Yes
  • Connection
    Integral QD
  • Input Type
    PNP
  • Max Op. Relative Humidity Non-Condensing (%)
    95% @ 50°C
  • Pro-Editor Compatible (Discrete)
    No
  • Housing Style
    Base Mount - Tower
  • Color Technology
    Standard LED
  • Max Current Color (mA)
    100
  • Min Op. Temperature (°C)
    -20
  • Mounting Thread
    M30 x 1.5
  • Color 1 - Wavelength/Color Temp/Coordinates
    625 nm
  • Max Input Response Time (ms)
    10
  • Feature: Hazardous Area
    No
  • Number of Input Pins/Conductors
    5
  • Primary Window Material
    Polycarbonate Diffused
  • Number of Colors / Segments
    1
  • Lumens Color 1
    38.0
  • Audible Operating Frequency (kHz)
    2.1
  • NEMA Type and UL Type Rating
    NEMA and UL 13
  • IO Link
    No
  • Feature: Chemical Resistant
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

CL50XRXAOS4IPQ Related Documents

CL50 Column Light -- Datasheet-1630953756775.pdfCL50 QD SEALED OMNIDIRECTIONAL AUDIBLE-1630953756772.stpCL50 QD SEALED OMNIDIRECTIONAL AUDIBLE-1630953756774.pdf
