Part#:CL50GXXAOS3PCQP

Manufacturer:Banner

Category:Electronic Components

Product Lifecycle:Active

Product description

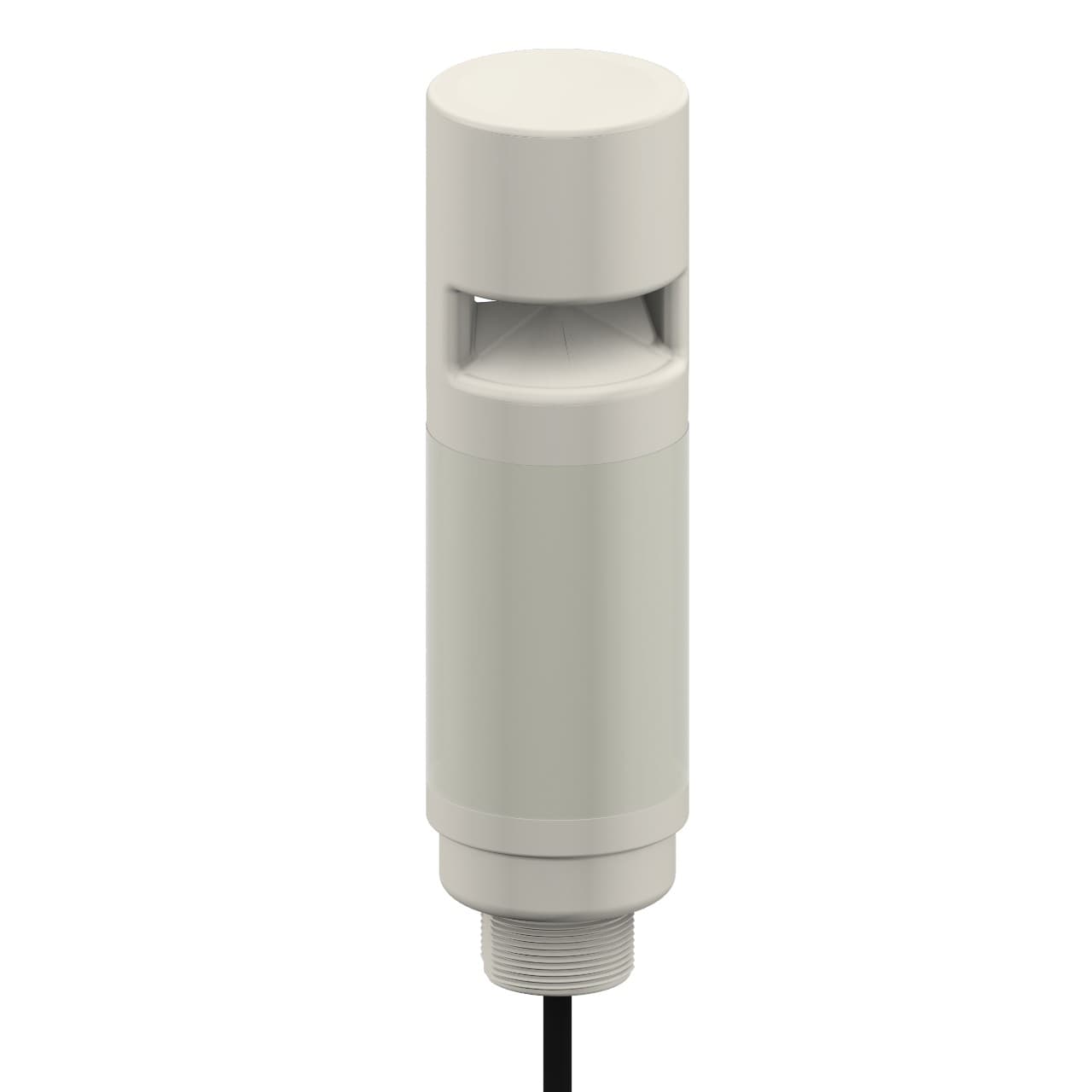

Column Light: Gray Housing: 1-Color Sealed Omni-directional Pulsed Audible Indicator, Voltage: 18-30 V dc; Environ. Rating: IP67, Input: PNP; Colors: Green, Euro 5-pin 150 mm (6 in) PVC Pigtail

Product Details

  • Primary Housing Material
    ABS/Polycarbonate
  • Color 1 - Wavelength/Color Temp/Coordinates
    525 nm
  • Audible Operating Frequency (kHz)
    2.1
  • Primary Housing Color
    Gray
  • Feature: Quick Disconnect
    Yes
  • Power
    DC
  • Animation Option 1
    Solid On
  • Supply Voltage
    18-30 V dc
  • NEMA Type and UL Type Rating
    NEMA and UL 13
  • Wireless
    No
  • Max Current Color (mA)
    100
  • Max Input Response Time (ms)
    10
  • Feature: Audible
    Yes
  • Power Source
    DC
  • Quick Disconnect Type
    M12 (Euro)
  • Max Audible Intensity (db at 1m)
    99
  • Min Op. Temperature (°C)
    -20
  • IO Link
    No
  • Mounting Thread
    M30 x 1.5
  • Housing Style
    Base Mount - Tower
  • Color Technology
    Standard LED
  • Audible Alarm Type
    Pulsed
  • Environmental Rating
    IP67
  • Pro-Editor Compatible (Discrete)
    No
  • Cable Length (m)
    0.15
  • Connection
    Pigtail QD
  • Input Type
    PNP
  • Max Op. Temperature (°C)
    50
  • Modbus RTU
    No
  • Color Option 1
    Green
  • Product Size (mm)
    50
  • Physical Dimensions (LxWxH or DxH mm)
    50.0 x 182.2
  • Primary Window Material
    Polycarbonate Diffused
  • Indication
    Yes
  • Number of Colors / Segments
    1
  • Number of Input Pins/Conductors
    5
  • Max Current - Audible Alarm (mA)
    45
  • Feature: Hazardous Area
    No
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Lumens Color 1
    72.0
  • Max Op. Relative Humidity Non-Condensing (%)
    95% @ 50°C
  • Feature: Chemical Resistant
    No

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

CL50GXXAOS3PCQP Related Documents

CL50 CABLE SEALED OMNIDIRECTIONAL AUDIBLE-1630953744141.pdfCL50 CABLE SEALED OMNIDIRECTIONAL AUDIBLE-1630953744145.stpCL50 Column Light -- Datasheet-1630953744139.pdf
